Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Drain the coolant.
(Refer to Cooling System - "COOLANT ")
- Remove the oil filter.
(Refer to Lubrication System - "ENGINE OIL ")

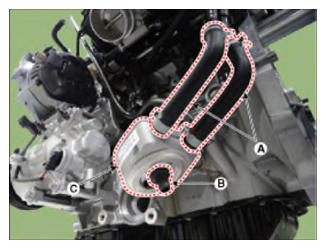

- Disconnect the oil cooler coolant hoses (A).
- Loosen the mounting bolt (B) and remove the oil cooler assembly (C).
