Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.

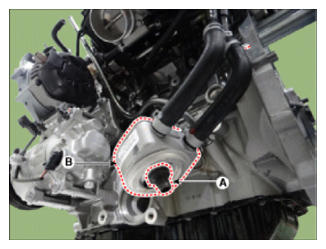

- Apply a light coat of engine oil to the oil cooler packing surface and then install the oil cooler (B) with fix bolt (A).
Tightening torque:
44.1 - 53.9 N.m (4.5 - 5.5 kgf.m, 32.5 - 39.8 lb-ft)
NOTE:- Fix position of oil cooler stopper (A) where oil cooler resists on ladder frame stopper (B).

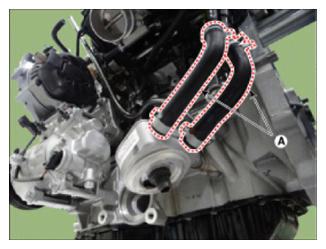

- Connect the oil cooler coolant hoses (A).
- Install the oil filter.
(Refer to Lubrication System - "ENGINE OIL ")
- Fill the radiator with coolant and check for leaks.
(Refer to Cooling System - "COOLANT ")
