[Clutch tube]

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition OFF switch and the disconnect the battery negative (-) cable.
  2. Remove the brake fluid from the master cylinder reservoir with a syringe.
    NOTE:
    • Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
    • Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
  3. Remove the vacuum pump.

    (Refer to Brake System - "VACUUM PUMP ")

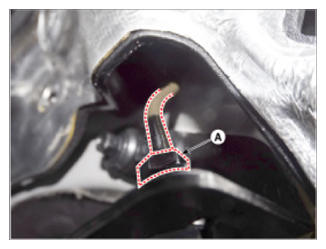

  4. Loosen the clutch tube flare nut (A).
    G13539690Courtesy of HYUNDAI MOTOR AMERICA
  5. Remove the brake booster.

    (Refer to Brake System - "BRAKE BOOSTER ")

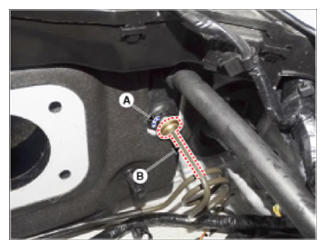

  6. Remove the clip (A) and then separate the clutch tube (B).
    G13539691Courtesy of HYUNDAI MOTOR AMERICA

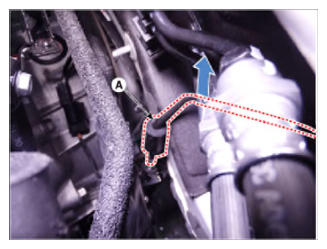

  7. Pull the clutch tube (A) upward and remove it from clutch tube bracket.
    G13539692Courtesy of HYUNDAI MOTOR AMERICA
    CAUTION:
    • When replacing the component, be careful not to damage the clutch tube.
