[Clutch hose]
WARNING: This page is about a different variant/trim than selected.
- Turn ignition OFF switch and the disconnect the battery negative (-) cable.
- Remove the brake fluid from the master cylinder reservoir with a syringe.NOTE:
- Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
- Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.
- Remove the vacuum pump.
(Refer to Brake System - "VACUUM PUMP ")

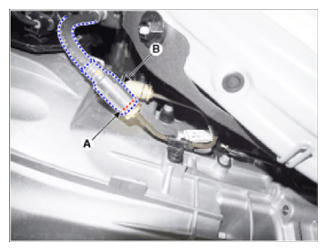

- Loosen the clutch tube flare nut (A) and then removing the clip (B).

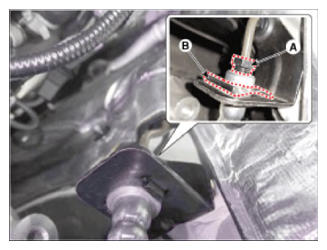

- Remove the clip (A) and the clutch hose (B).
