Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition OFF switch and the disconnect the battery negative (-) cable.
  2. Remove the brake fluid from the master cylinder reservoir with a syringe.
    NOTE:
    • Do not spill brake fluid on the vehicle, it may damage the paint; if brake fluid does contact the paint, wash it off immediately with water.
    • Make sure no dirt or other foreign matter is allowed to contaminate the brake fluid.

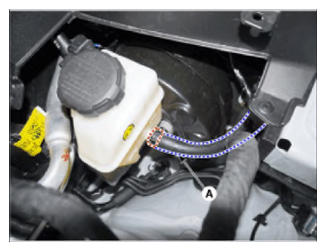

  3. Separate the reservoir hose (A).
    G13539678Courtesy of HYUNDAI MOTOR AMERICA
  4. Remove the brake booster.

    (Refer to Brake System - "BRAKE BOOSTER ")

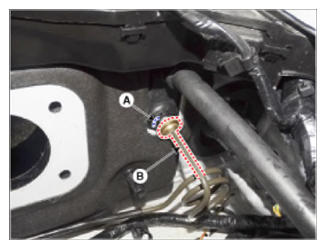

  5. Remove the clip (A) and then separate the clutch tube (B).
    G13539679Courtesy of HYUNDAI MOTOR AMERICA
  6. Remove the crash pad lower panel.

    (Refer to Body - "CRASH PAD LOWER PANEL ")

  7. Remove the knee airbag.

    (Refer to Restraint - "KNEE AIRBAG (KAB) MODULE ")

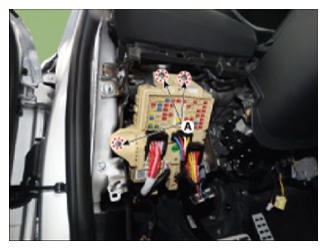

  8. Loosen the mounting nut (A) and separate the interior junction block.
    G13539680Courtesy of HYUNDAI MOTOR AMERICA

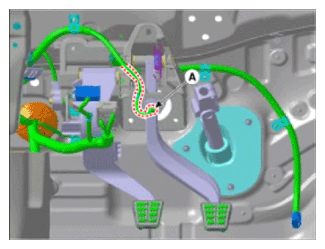

  9. Disconnect the stop lamp switch connector (A).
    G13539681Courtesy of HYUNDAI MOTOR AMERICA
  10. Remove the clutch & brake pedal assembly.
    1. Loosen the clutch & brake pedal upper mounting bolt and nuts (A).
      G13539682Courtesy of HYUNDAI MOTOR AMERICA
    2. Loosen the clutch & brake pedal mounting nuts (B).
      G13539683Courtesy of HYUNDAI MOTOR AMERICA

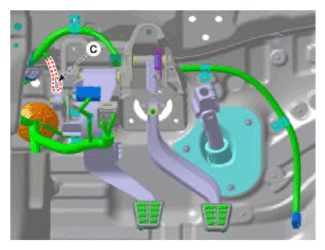

    3. Disconnect the clutch & ignition lock switch connector (C).
      G13539684Courtesy of HYUNDAI MOTOR AMERICA
    4. Remove the clutch & brake pedal assembly (D).
      G13539685Courtesy of HYUNDAI MOTOR AMERICA
  11. Remove the clutch master cylinder.
    1. Remove the clip (A).
      G13539686Courtesy of HYUNDAI MOTOR AMERICA

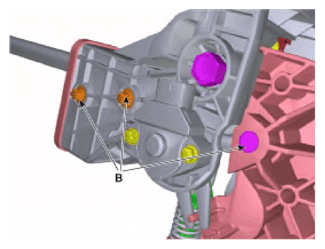

    2. Remove the pin (B).
      G13539687Courtesy of HYUNDAI MOTOR AMERICA
    3. Remove the clutch master cylinder (C).
      G13539688Courtesy of HYUNDAI MOTOR AMERICA
