Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Remove the manual transmission assembly.
(Refer to Manual Transmission System - "MANUAL TRANSMISSION ")

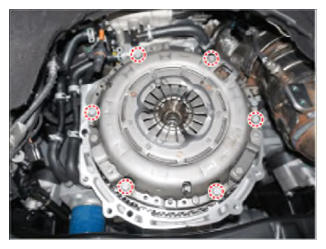

- Remove the clutch cover assembly after loosening the bolts.NOTE:
- Be careful not to be bent or twist bolts. Loosen bolts in diagonal directions.
