Repair Procedures: Installation
WARNING: This page is about a different variant/trim than selected.
NOTE:
- If reinstalling used cover, the cover should be installed with its clutch disc as a set.
- Apply grease on a disc spline part and transaxle input shaft spline part as required.
Specified grease :CASMOLY L9508
Amount : About 0.2 g
NOTE: Possible problems when not following- When not applying: Excessive wear of splines and bad clutch operation can occur.
- When excessively applying: Grease can be scattered by centrifugal force which can contaminate the clutch disc. This can cause a loss of friction force causing a slip.

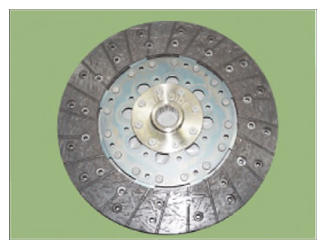

- The 'T/M SIDE' marked surface should face the transaxle.NOTE: Possible problems when the disc is installed in the opposite direction.
- Transaxle shift error or a strange sound can occur due to clutch separation.

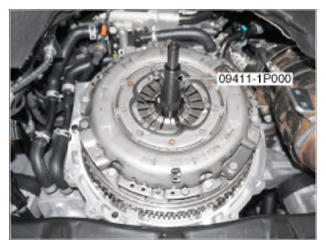

- Install the clutch disc and the cover with SST (09411-1P000).
- Install the clutch cover bolts.
Tightening torque :
24.5 - 34.3 N.m (2.5 - 3.6 kgf.m, 18.1 - 26.0 lb-ft)
CAUTION:- Install the all the components with the specified torques. If not, the clutch torque transaxle may have concerns or the mounting bolt can loosen.

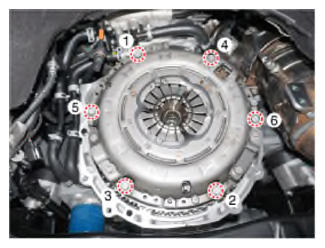

- When installing the clutch cover assembly, check the below fastening order for each number of bolts and tighten the bolts loosely. Then, fasten the bolts to their proper tightening torque. This can prevent twisting and vibration of the cover, and the lifting of the pressure plate. The cover, and the lifting of the pressure plate.
- Remove the clutch disc guide SST (No.: 09411-1P000).
- Install the manual transmission assembly.
(Refer to Manual Transmission System - "MANUAL TRANSMISSION ")
