Repair Procedures: Adjustment

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • After replacing the VCMA (Variable Charge Motion Actuator) or intake manifold, be sure to delete the previous VCMA additive value by performing the 'resetting adaptive values' procedure using GDS.

Information

VCMA learning procedure is performed automatically while driving but manual learning procedure is also available for immediate access to proper operation.

  1. Push the accelerator pedal at 2, 500 engine RPM for 2-3 seconds and then idle the engine.
  2. Repeat the no. 1 procedure three times.
  3. Switch "OFF" the ignition.
  1. Switch "OFF" the ignition.
  2. Connect the GDS to Data Link Connector (DLC).
  3. Switch "ON" the ignition.
  4. Select "Vehicle, Model year, Engine, System".
  5. Select "Vehicle S/W Management".

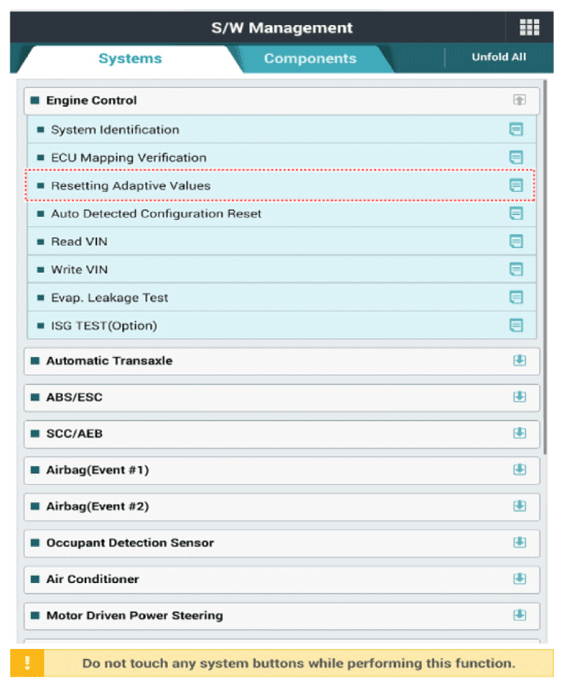

  6. Delete the previous VCMA adaptive value by selecting "Resetting Adaptive Values".
    G13539452Courtesy of HYUNDAI MOTOR AMERICA
  7. Press [Reset] when ready.
  8. Reset completed.
