Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Remove the engine cover.
(Refer to Engine Mechanical System - "ENGINE COVER ")

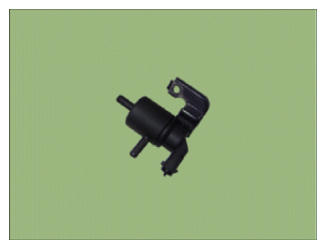

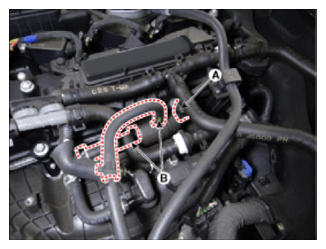

- Disconnect the purge control solenoid valve connector (A).
- Disconnect the vapor hoses (B) from the purge control solenoid valve.
