Repair Procedures: Removal
WARNING: This page is about a different variant/trim than selected.
WARNING:
- DON'T remove the camshaft position sensor while the engine is running or right after engine is turned off. The part and engine oil is hot and can cause burns.
- Switch "OFF" the ignition and disconnect the negative (-) battery terminal.
- Disconnect the camshaft position sensor connector (A).
- Remove the camshaft position sensor after loosening the mounting bolt (B).
Camshaft position sensor installation bolt:
9.8 - 11.8 N.m (1.0 - 1.2 kgf.m, 7.2 - 8.7 lb-ft)

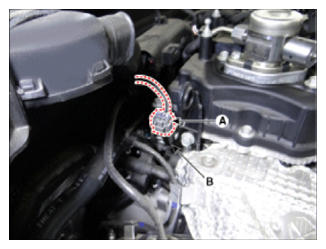

[Bank 1/Intake]

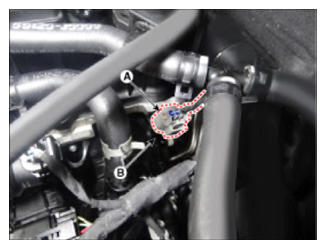

[Bank 1/Exhaust]
