Inspect the stop lamp circuit

Connect probe to each terminal wire and confirm oscilloscope waveform.

[Stop lamp switch input/output]

G13540956Courtesy of HYUNDAI MOTOR AMERICA

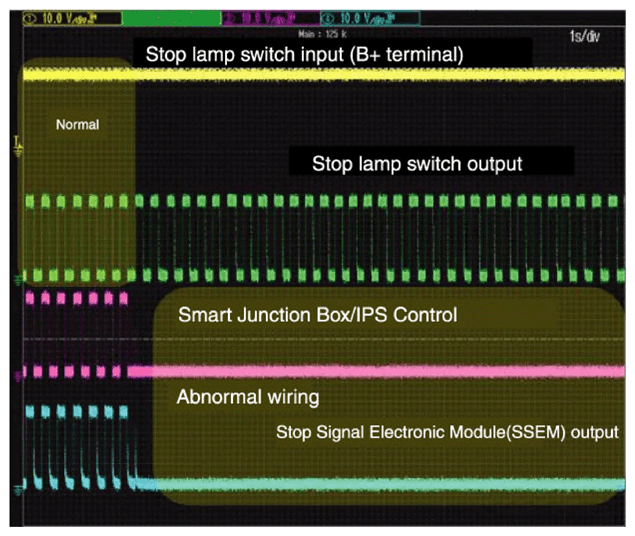

[Oscilloscope waveform screen]

G13540957Courtesy of HYUNDAI MOTOR AMERICA
