Repair procedures: Replacement

CAUTION:

Information

When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
Take care not to bend or scratch the trim and panels.

Remove the glove box.
(Refer to Crash Pad - "GLOVE BOX ")

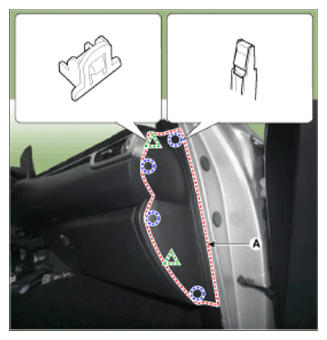

Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

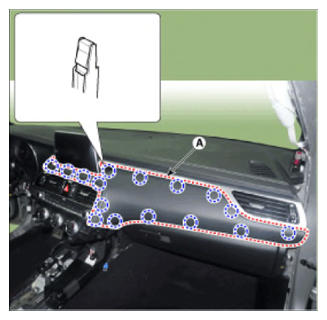

After loosening the mounting screws, remove the crash pad center panel [RH] (A).

Courtesy of HYUNDAI MOTOR AMERICA

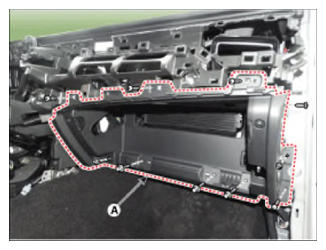

After loosening the mounting screws bolts and nuts, remove the glove box housing cover (A).

Courtesy of HYUNDAI MOTOR AMERICA

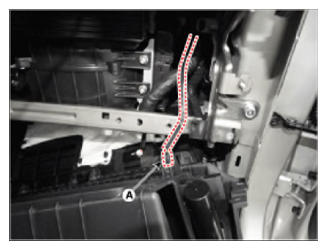

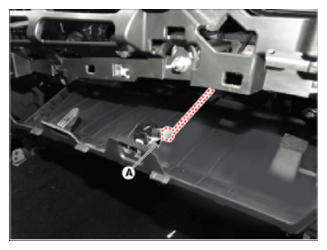

Disconnect the glove box lamp connector (A) and lamp switch connector (B).

Courtesy of HYUNDAI MOTOR AMERICA

Courtesy of HYUNDAI MOTOR AMERICA
To install, reverse the removal procedure.
Information
- Make sure the connector are connected in properly.
- Replace any damaged clips (or pin-type retainers).
