Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Disconnect the negative (-) battery terminal.
2. Recover the refrigerant with a recovery/recycling/charging station.
3. Remove the cowl top cover.

   (Refer to "COWL TOP COVER ")

4. Disconnect the steering column connectors.

   (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

5. Loosen the mounting nuts and through bolts in the frontal area and lower the steering column.

   (Refer to Steering System - "STEERING COLUMN AND SHAFT ")

6. Disconnect the expansion valve from the evaporator core.

   (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

7. Disconnect the inlet and outlet heater hoses from the heater unit.

   (Refer to Heating, Ventilation And Air Conditioning - "HEATER UNIT ")

8. Remove the main crash pad assembly.

   (Refer to Crash Pad - "MAIN CRASH PAD ASSEMBLY ")

9. Remove the accelerator pedal.

   (For 2.0L, refer to - "ACCELERATOR POSITION SENSOR (APS) ". For 3.3L, refer to -"ACCELERATOR POSITION SENSOR (APS) ".)

10. Separate the floor carpet (A) to obtain space for removing the rear heating duct.

    Courtesy of HYUNDAI MOTOR AMERICA

11. Loosen the mounting bolt and remove the floor air duct (A).

    Courtesy of HYUNDAI MOTOR AMERICA

12. Disconnect the airbag control module (SRSCM) connector (A).

    Courtesy of HYUNDAI MOTOR AMERICA

13. Disconnect the connector (A) and the mounting wiring fasteners in the front pillar.

    [Driver's]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Courtesy of HYUNDAI MOTOR AMERICA

14. Disconnect the passenger compartment junction box connectors (A).

    Courtesy of HYUNDAI MOTOR AMERICA

15. Disconnect the multi box connectors (A).

    [Driver's]

    Courtesy of HYUNDAI MOTOR AMERICA

    [Passenger's]

    Courtesy of HYUNDAI MOTOR AMERICA

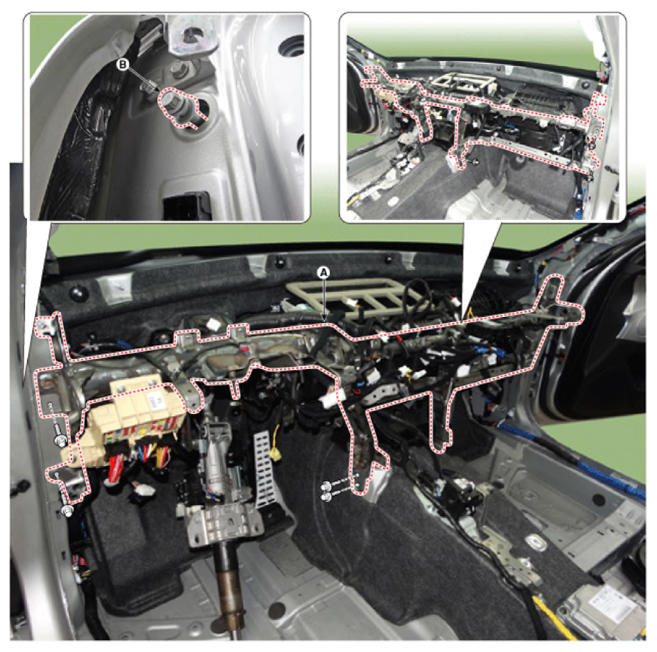

16. After loosening the bolts and nuts, remove the cowl cross bar assembly (A).

    Tightening torque:

    16.7 - 25.5 N.m (1.7 - 2.6 kgf.m, 12.3 - 18.8 lb-ft)

    Courtesy of HYUNDAI MOTOR AMERICA

    NOTE:

    • Release the bolt tightness and then leave the bolt (B) in its place.
17. To install, reverse the removal procedure.

    Information

    • Make sure the crash pad fits onto the guide pins correctly.
    • Before tightening the bolts, make sure the crash pad wire harnesses are not pinched.
    • Make sure the connectors are plugged in properly, and the antenna lead is connected properly.
    • Enter the anti-theft code for the radio, then enter the customer's radio station presets.
    • Make sure that each of the assembly components operates properly.
    • Replace any damaged clips (or pin-type retainers).
