Repair Procedures: Replacement

Information

• When removing with a flat-tip screwdriver or remover, wrap protective tape around the tools to prevent damage to components.
• Use a plastic panel removal tool to remove interior trim pieces without marring the surface.
• Take care not to bend or scratch the trim and panels.

1. Lower the steering wheel.
2. Remove the crash pad lower panel.

   (Refer to Crash Pad - "CRASH PAD LOWER PANEL ")

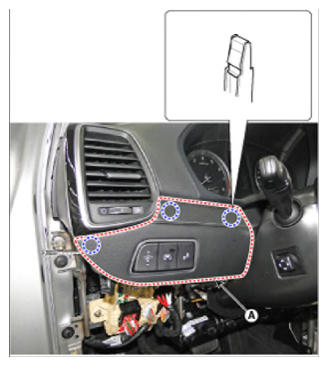

3. After loosening the mounting screws, remove the crash pad center panel [LH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

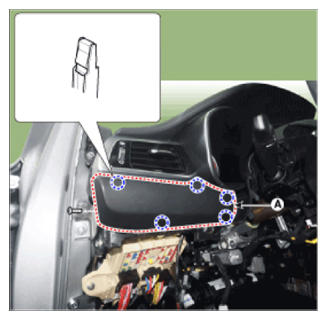

4. After loosening the mounting screws, remove the garnish panel [LH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

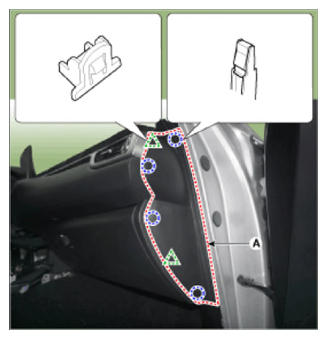

5. Using a screwdriver or remover, remove the crash pad side cover [RH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

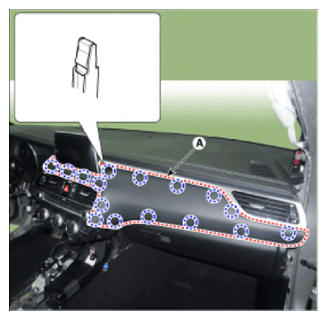

6. After loosening the mounting screws, remove the crash pad center panel [RH] (A).

   Courtesy of HYUNDAI MOTOR AMERICA

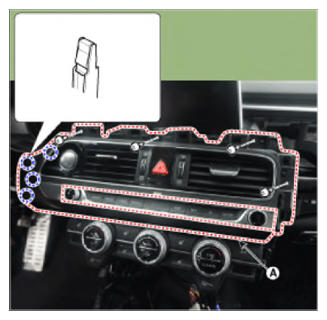

7. After loosening the mounting screws, remove the crash pad center fascia panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

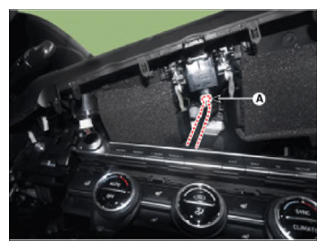

8. Disconnect the connector (A).

   Courtesy of HYUNDAI MOTOR AMERICA

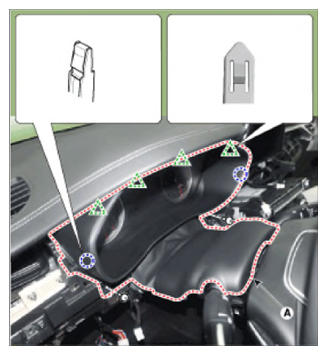

9. After loosening the mounting screws, remove the cluster fascia panel (A).

   Courtesy of HYUNDAI MOTOR AMERICA

10. To install, reverse removal procedure.

    Information

    • Make sure the connector are connected in properly.
    • Replace any damaged clips (or pin-type retainers).
