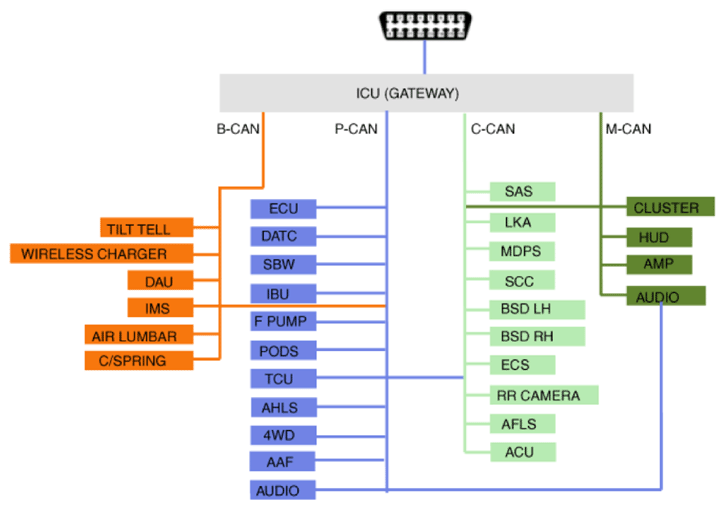

Communication Network Diagram

Courtesy of HYUNDAI MOTOR AMERICA

Abbreviation	Explanation
ICU	ICU Intergrated Central Control Unit
CLUSTER	Cluster Module
HUD	Head Up Display
SAS	Steering Angle Sensor
AVM	Around View Monitor
LKA	Lane Keeping Assist
ACU	Airbag Control Unit
MDPS	Motor Driven Power Steering
SCC	Smart Cruise Control
BCW LH	Blind Spot Collision Warning LH
BCW RH	Blind Spot Collision RH
ECS	Electronic Control Suspension
RR CAMERA	Rear View Camera
AFS	Adaptive Front Lighting System
ECU	ECM
DATC	Dual Automatic Temp Control
AUDIO	AUDIO
SBW	Shift By Wire
ACU	Airbag Control Unit
IBU	Integrated Body Control Unit
F_PUMP	Fuel Pump Control Module
ODS	Occupant Detection System
VDC	Vehicle Dynamic Control
EOP	Electronic Oil Pump
TCU	TCM
AHLS	Active Hood Lift System
4WD	Four Wheel Drive
AAF	Active Air Flap
TILT TELL	Steering Tilt & Telescopic
WIRESESS CHATGER	WIRESESS CHATGER
DAU	Driver Power Window Switch
IMS	Integrated Memory System
AIR LUMBAR	Driver Seat Lumber Support System
C/SPRING	Clock Spring
AMP	AMP

NOTE: Refer to the "Body Network System" for the abbreviation information.
