Diagnosis With GDS
- It will be able to diagnose defects of CLU with GDS quickly. GDS can operates actuator forcefully, input/output value monitoring and self diagnosis.
- Select model and "BCM".
- Select the "Cluster Module" to check.

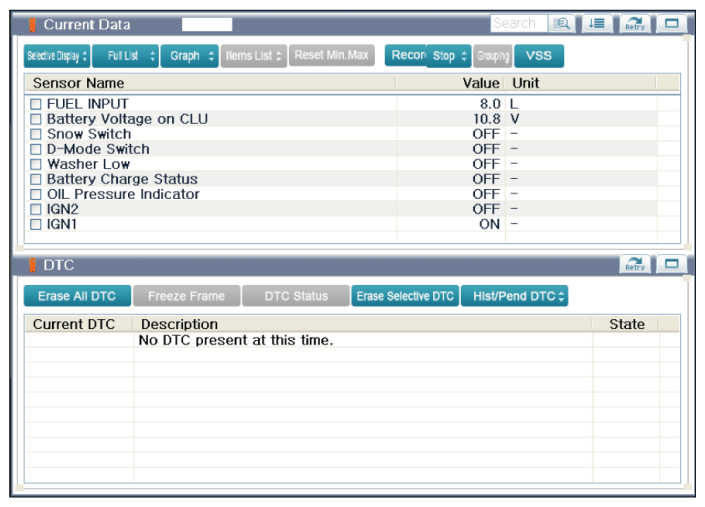

- Select "Input/output monitoring", if you will check current data of instrument cluster.
- If you will check each module data operation forcefully, select "Actuation test".
