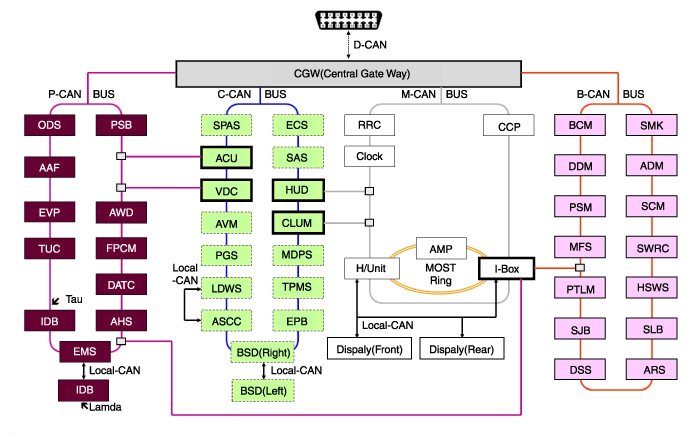

Communication Network Diagram

Courtesy of HYUNDAI MOTOR AMERICA

Abbreviation	Explanation
AAF	Active Air Flap
ACU	Airbag Control Unit
ADM	Assist Door Module
AHD	Active Hood System
AMP	Amplifier
ARS	Armrest Switch
ASCC	Advanced Smart Cruise Control
AVM	Around View Monitor
AWD	All Wheel Drive
B_CAN	Body Controller Area Network
BCM	Body Control Module
BSD	Blind Spot Detection
C_CAN	Chassis Controller Area Network
CCP	Center Control Panel
CLUM	Cluster Module
DATC	Dual Automatic Temp Control
DDM	Driver Door Module
Display	Display Monitor
DSS	Driver Seat Switch
ECS	Electronic Control Suspension
EMS	Engine Management System
EPB	Electronic Parking Brake
EVP	Eva Vacuum Pump
FPCM	Fuel Pump Control Module
H/Unit	Head Unit
HSWS	Haptic Steering Warning System
HUD	Head Up Display
I-BOX	Telematics System
IDB	Integrated Dynamic Brake
LDWS	Lane Departure Warning System
M_CAN	Multi media Controller Area Network
MDPS	Motor Driven Power Steering
MFS	Multi-Function Switch
ODS	Occupant Detection System
P_CAN	Powertrain Controller Area Network
PGS	Parking Guide System
PSB	Pre-Safe Seat Belt
PSM	Power Seat Module
PTLM	Power Trunk Lid Module
RRC	Rear Remote Control
SAS	Steering Angle Sensor
SCM	Steering Column Module
SJB	Smart Junction Box
SLB	Seat Lumber Bolster
SMK	Smart Key Unit
SPAS	Smart Parking Assist System
SWRC	Steering Wheel Remote Controller
TCU	Transmission Control Unit
TPMS	Tire Pressure Monitoring System
VDC	Vehicle Dynamic Control

NOTE: Refer to the " Body Network System" BCM for the abbreviation information.
