Circuit Diagram

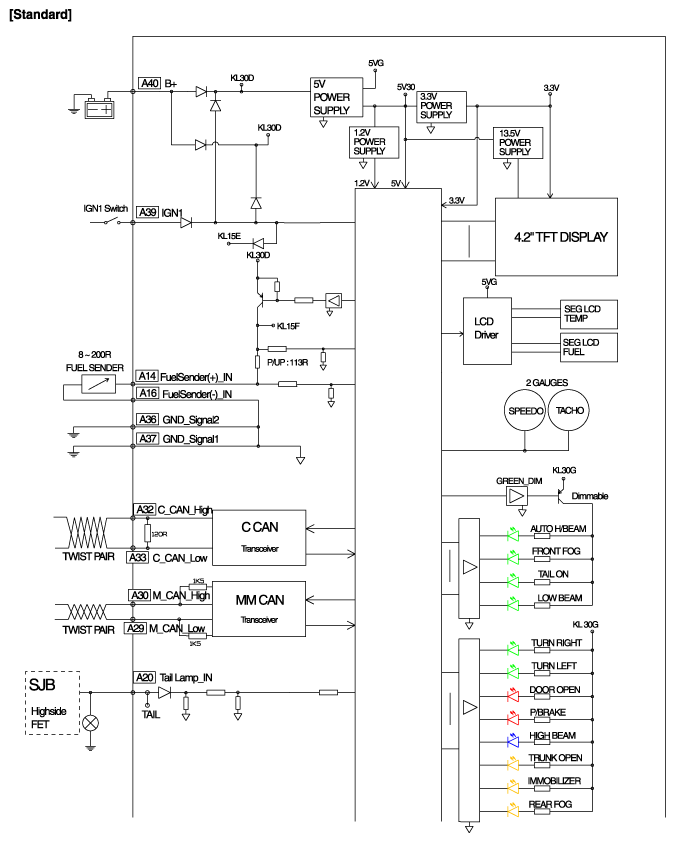

G11342349Courtesy of

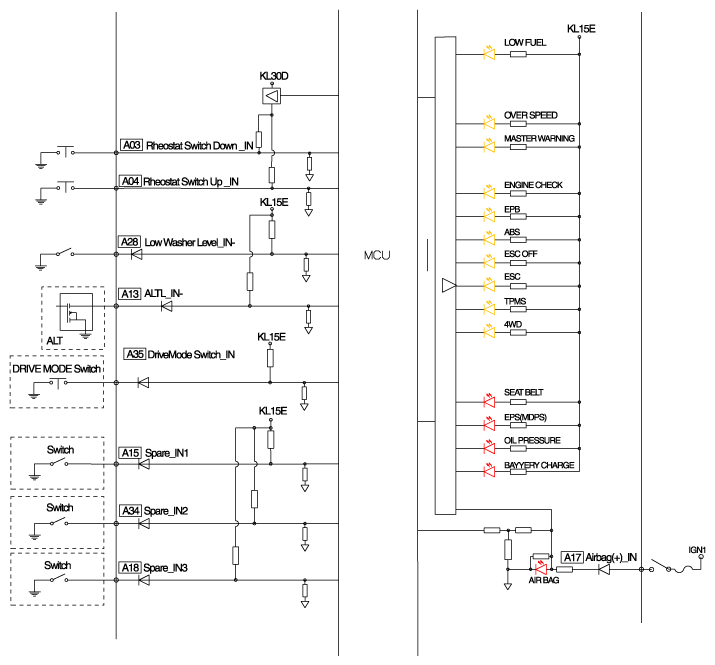

G11342350Courtesy of

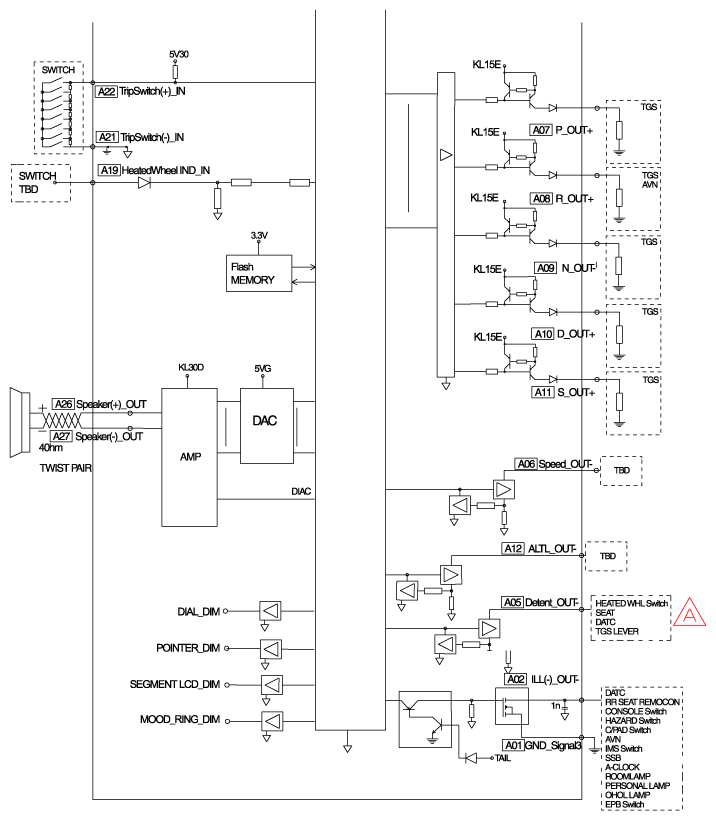

G11342351Courtesy of

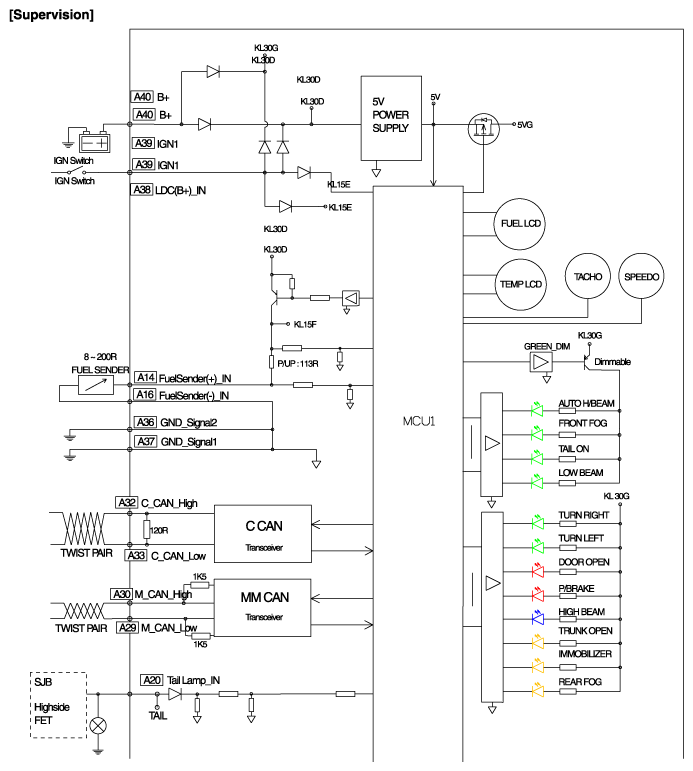

G11342352Courtesy of

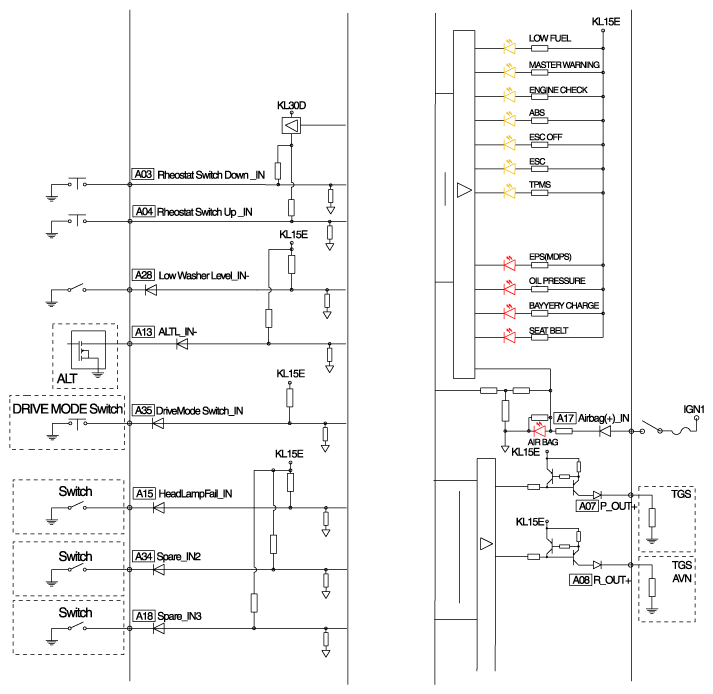

G11342353Courtesy of

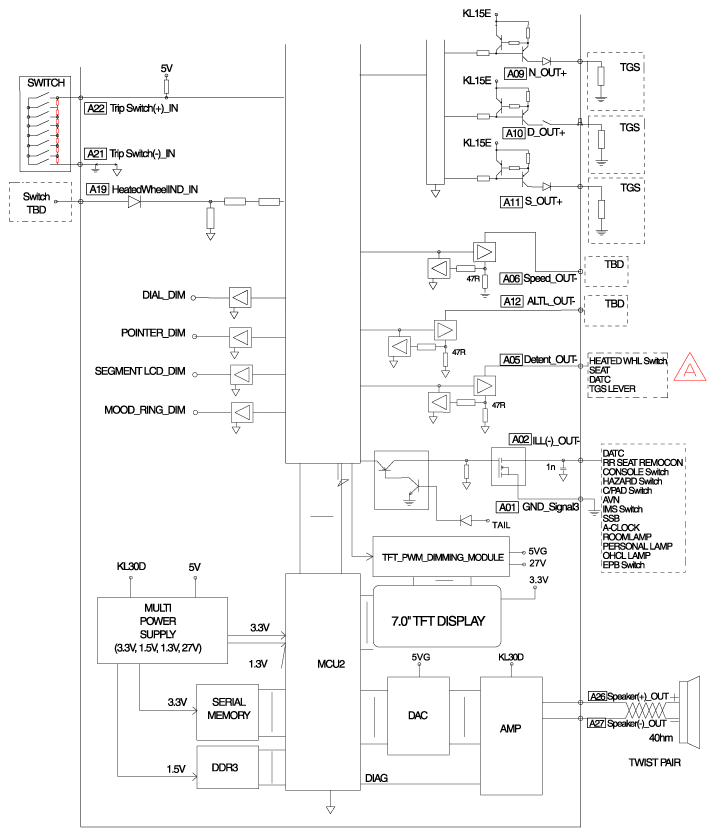

G11342354Courtesy of
