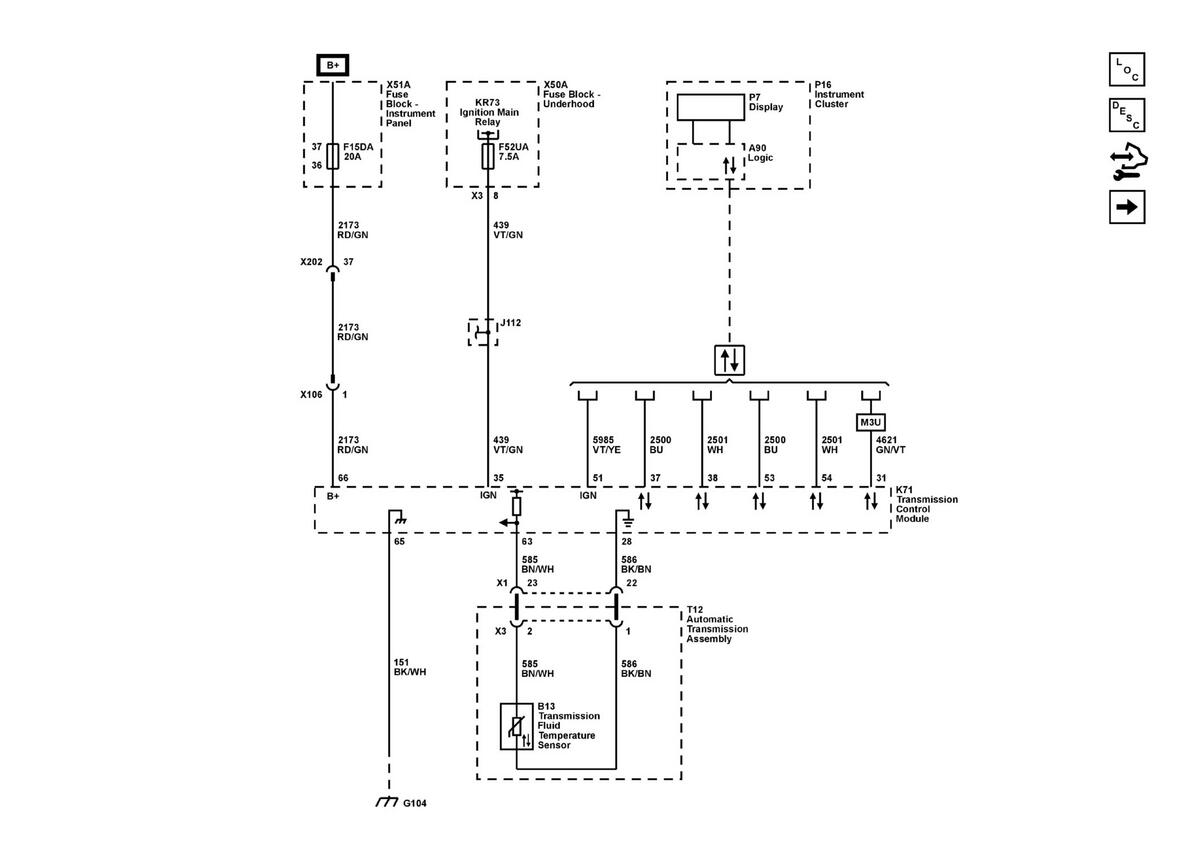

Power, Ground, Serial Data, MIL and Fluid Temperature

GM6228557

Courtesy of GENERAL MOTORS COMPANY
