Torque Converter Fluid Seal Replacement

WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

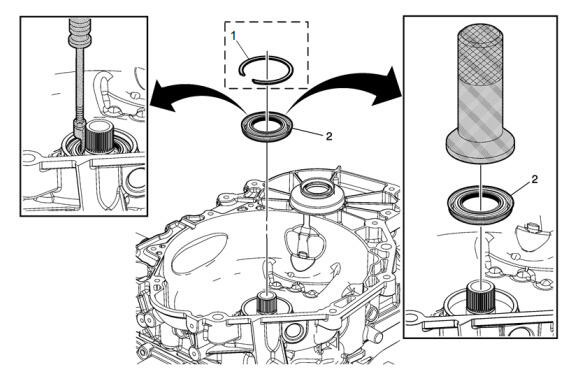

Callout	Component Name
1	{ If equipped } Torque Converter Fluid Seal Retainer NOTE: Gen 3 transmissions do not use torque converter fluid seal retainer.
2	Torque Converter Fluid Seal NOTE: For Gen 2 transmissions use DT-47791-B Seal Installer. For Gen 3 transmissions use J-29162 Seal Installer. Special Tools DT-47791-B Seal Installer DT-6125-B Slide Hammer EN-23129 Universal Seal Remover J-29162 Seal Installer For equivalent regional tools, refer to Special Tools .

Callout

Component Name

{ If equipped } Torque Converter Fluid Seal Retainer

NOTE:

Gen 3 transmissions do not use torque converter fluid seal retainer.

Torque Converter Fluid Seal

NOTE:

For Gen 2 transmissions use DT-47791-B Seal Installer. For Gen 3 transmissions use J-29162 Seal Installer.

Special Tools

DT-47791-B Seal Installer
DT-6125-B Slide Hammer
EN-23129 Universal Seal Remover
J-29162 Seal Installer

For equivalent regional tools, refer to Special Tools .
