Drive and Driven Sprocket, Drive Link, and Park Pawl Installation

WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

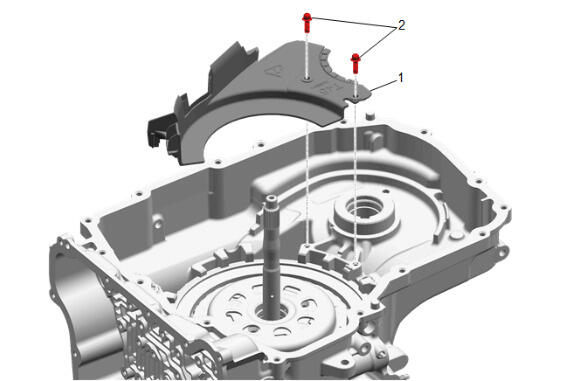

Front Differential Carrier Baffle (1) - Install

CAUTION:

Refer to Fastener Caution .

Front Differential Carrier Baffle Bolt (2) - Install and tighten - M6 x 16 [2x] 12 N.m (106 lb in)
Courtesy of GENERAL MOTORS COMPANY

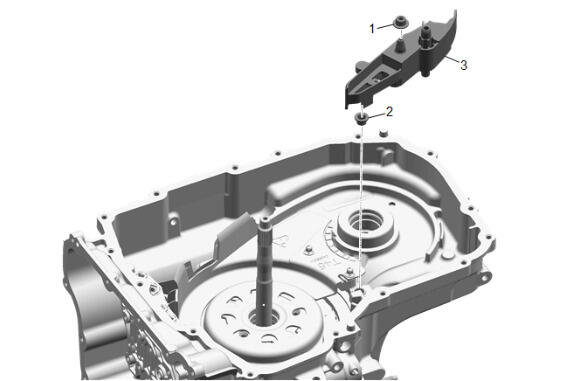

Drive Link Lube Scoop Seal (1) - Install
Drive Link Lubricant Fluid Seal (2) - Install
Drive Link Lubricant Scoop (3) - Install
Courtesy of GENERAL MOTORS COMPANY

Driven Sprocket Bearing (1) - Install
Drive Sprocket Bearing (2) - Install
Install the driven sprocket assembly, drive sprocket assembly and drive link (3) together.
NOTE:
- Install the drive link with the colored links and/or part number facing up.
- The drive link, drive, and driven sprocket assemblies must be installed at the same time.
- The ball bearing should spin freely and smoothly.
- The driven sprocket ball bearing inner race has a slight interference fit with the case. Tap gently with the palm of a hand or a soft tip hammer to install.
Drive Sprocket Thrust Washer (4) - Install
NOTE:
Ensure tabs on the thrust washer are inserted in the slots on the drive sprocket.
Courtesy of GENERAL MOTORS COMPANY

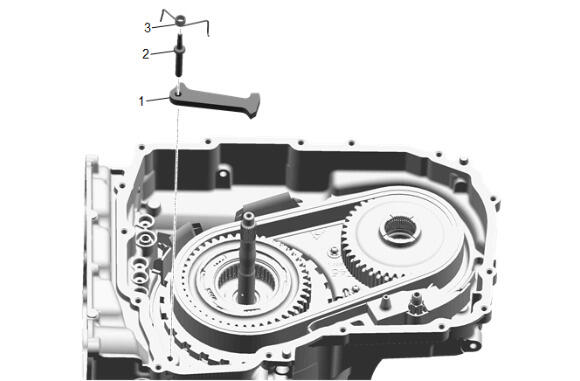

Park Pawl (1) - Install
Park Pawl Shaft (2) - Install
NOTE:
Check to ensure that the park pawl operates freely and is not binding.
Park Pawl Spring (3) - Install
