Control Valve Body Assembly Disassemble (Gen 3)
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

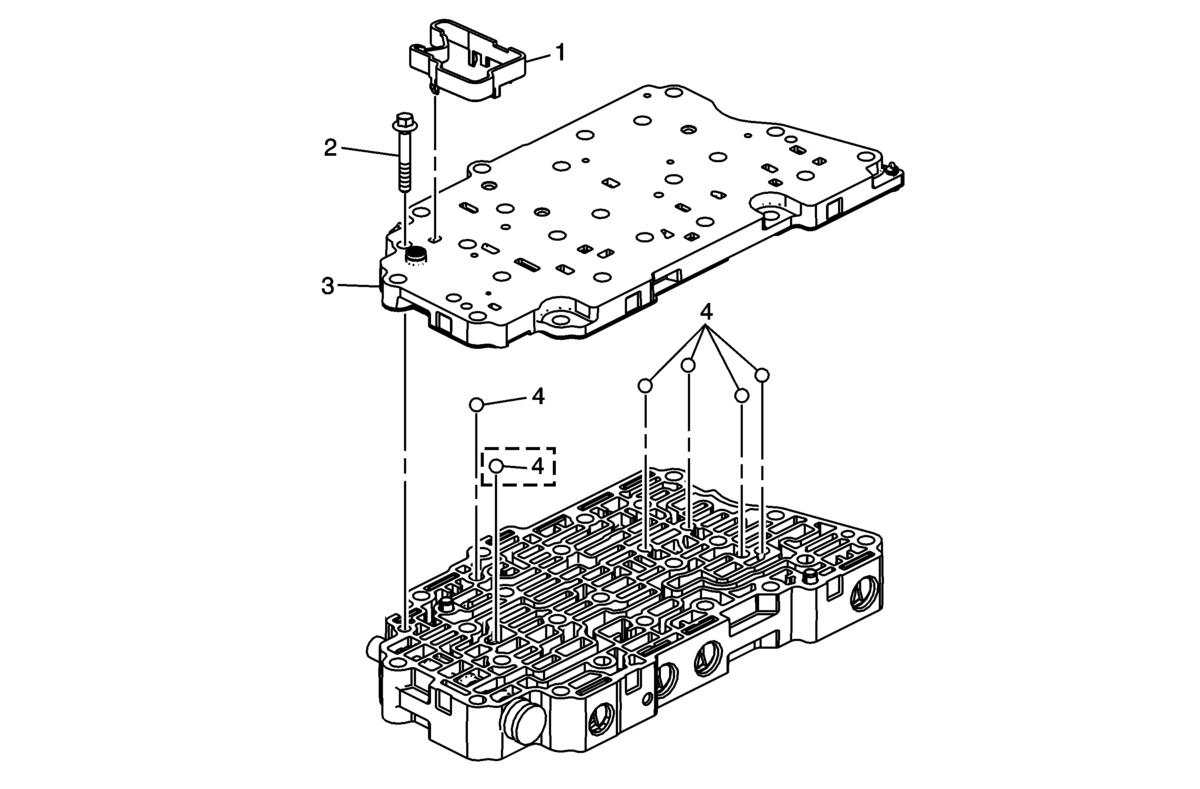

| Callout | Component Name |
|---|---|
| 1 | Control Solenoid Valve Support |
| 2 | Control Valve Body Bolt M5 x 40.5 (Qty: 1) |
| 3 | Valve Channel Plate
NOTE:
Inspect the channel plate bolt pass through holes for damage or brinelling. Any damage will cause incorrect pressure switch operation. Replace as necessary. |
| 4 | Valve Body Ball Check Valves - with S/S (Qty: 5), without S/S (Qty: 6) |
