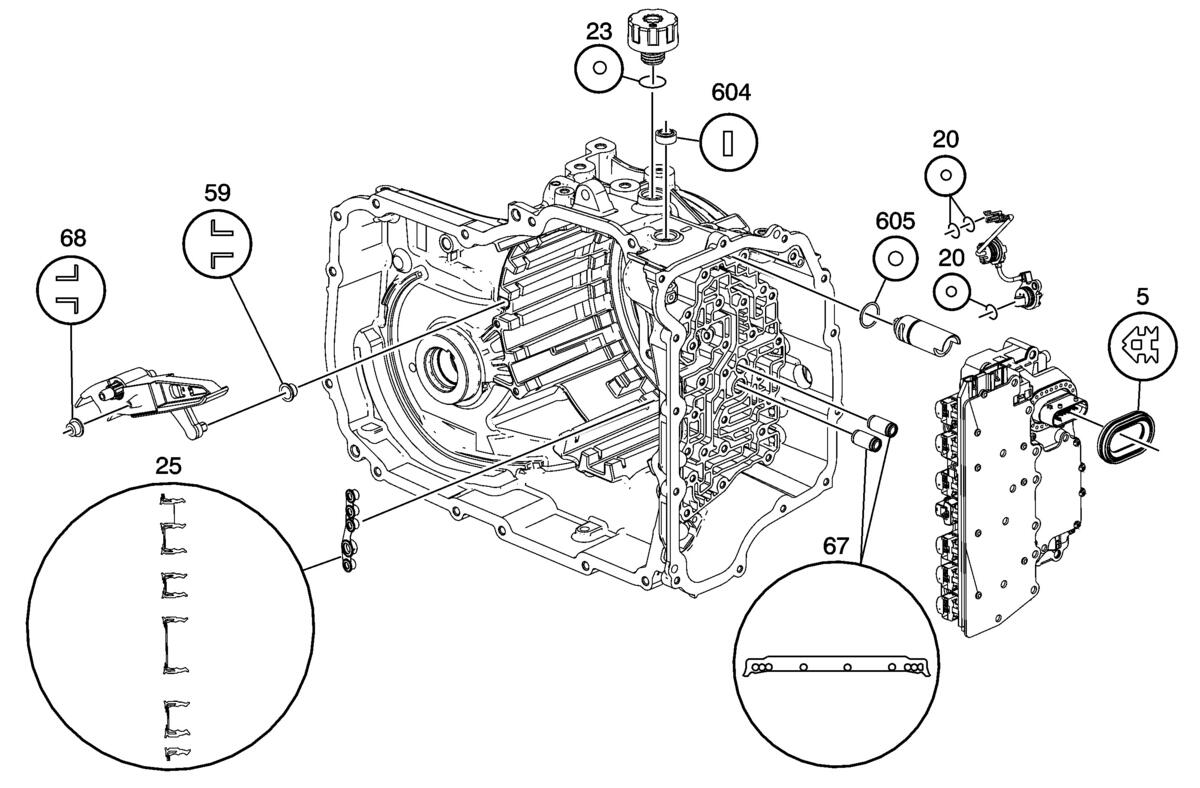

Seal Locations (2 of 2)
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 5 | Control Valve Body Cover Hole Seal |
| 20 | A/Trans Input Speed Sensor Assembly O-Ring Seal |
| 23 | Fill Cap Seal |
| 25 | A/Trans Fluid Pump Seal Assembly |
| 59 | Drive Link Lube Fluid Seal |
| 67 | 1 - 2 - 3 - 4 and Low Reverse Clutch Fluid Passage |
| 68 | Drive Link Lube Fluid Seal |
| 604 | Manual Shift Shaft Seal |
| 605 | Park Pawl Actuator Guide Seal |
