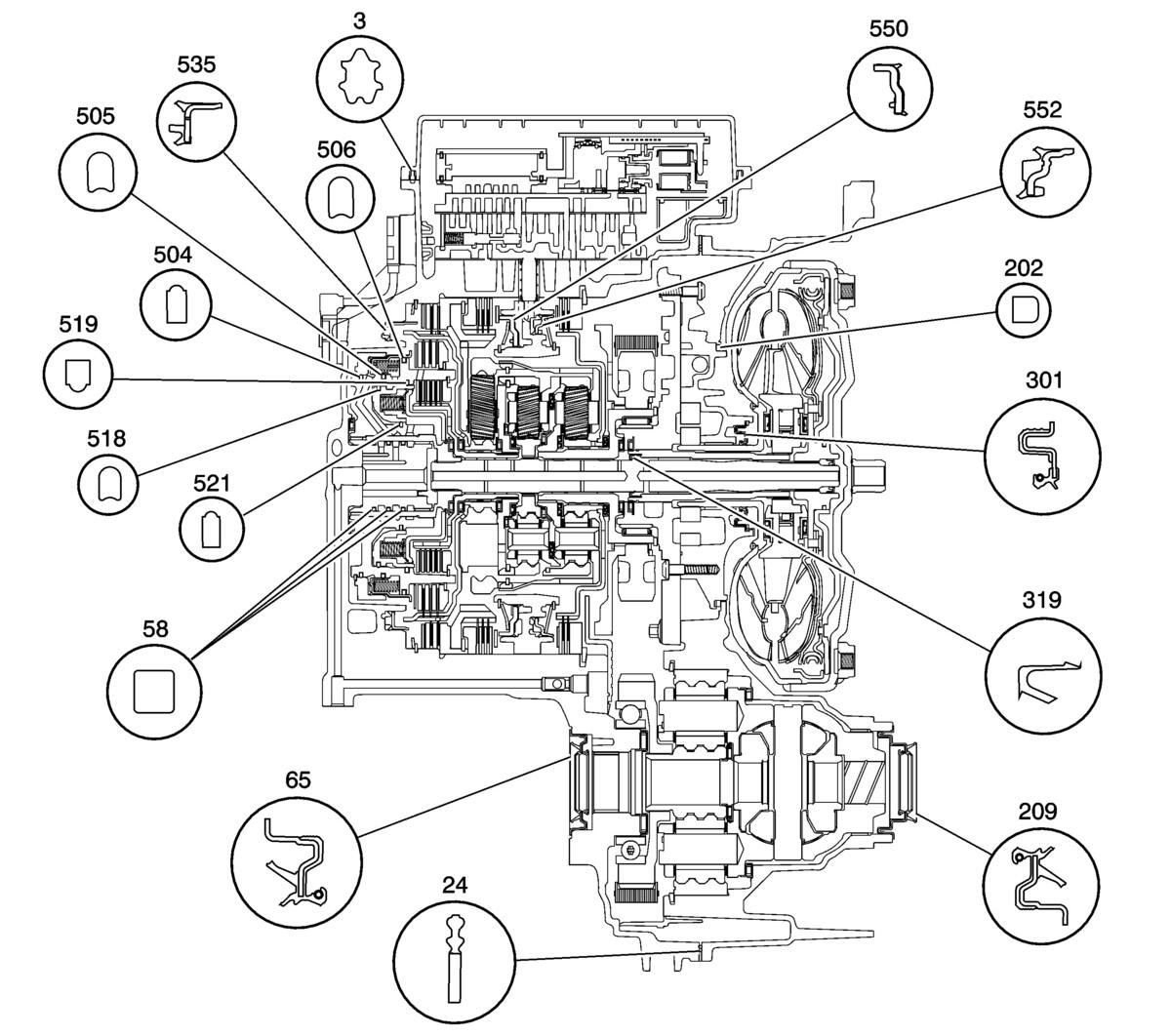

Seal Locations (1 of 2)
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 3 | Control Valve Body Cover Gasket |
| 24 | Torque Converter Housing Gasket |
| 58 | 3 - 5 - Reverse and 4 - 5 - 6 Clutch Fluid Seal Ring (Qty: 3) |
| 65 | Drive Shaft Oil Seal Assembly |
| 202 | Torque Converter and Differential Housing Seal |
| 209 | Front Wheel Drive Shaft Oil Seal Assembly |
| 301 | Torque Converter Fluid Seal Assembly |
| 319 | Torque Converter Fluid Seal Assembly |
| 504 | 3 - 5 - Reverse Clutch Piston Inner Seal |
| 505 | 3 - 5 - Reverse Clutch Piston Inner Seal |
| 506 | 3 - 5 - Reverse Clutch Piston Dam Seal |
| 518 | 4 - 5 - 6 Clutch Piston Outer Seal |
| 519 | 4 - 5 - 6 Clutch Piston Outer Seal |
| 521 | 4 - 5 - 6 Clutch Piston Inner Seal |
| 535 | 2 - 6 Clutch Piston Assembly |
| 550 | Low and Reverse Clutch Piston |
| 552 | 1 - 2 - 3 - 4 Clutch Piston |
