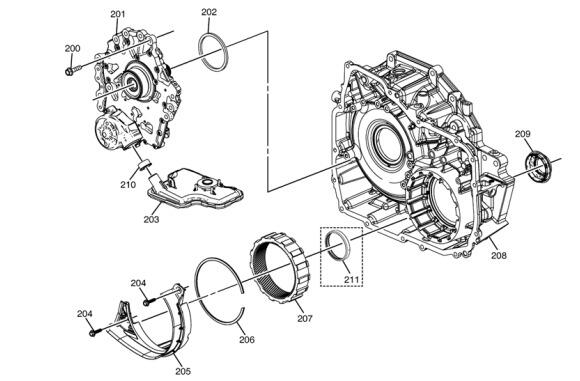

Torque Converter and Fluid Pump Housing Assembly - Gen 3
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 200 | A/Trans Fluid Pump Bolt |
| 201 | A/Trans Fluid Pump Assembly |
| 202 | Torque Converter and Differential Housing Seal |
| 203 | A/Trans Fluid Filter Assembly |
| 204 | Front Differential Carrier Baffle Bolt |
| 205 | Front Differential Carrier Baffle |
| 206 | Front Differential Ring Gear Retainer |
| 207 | Front Differential Ring Gear |
| 208 | Torque Converter and Differential Housing |
| 209 | Front Wheel Drive Shaft Oil Seal Assembly |
| 210 | A/Trans Fluid Pump Inlet Seal |
