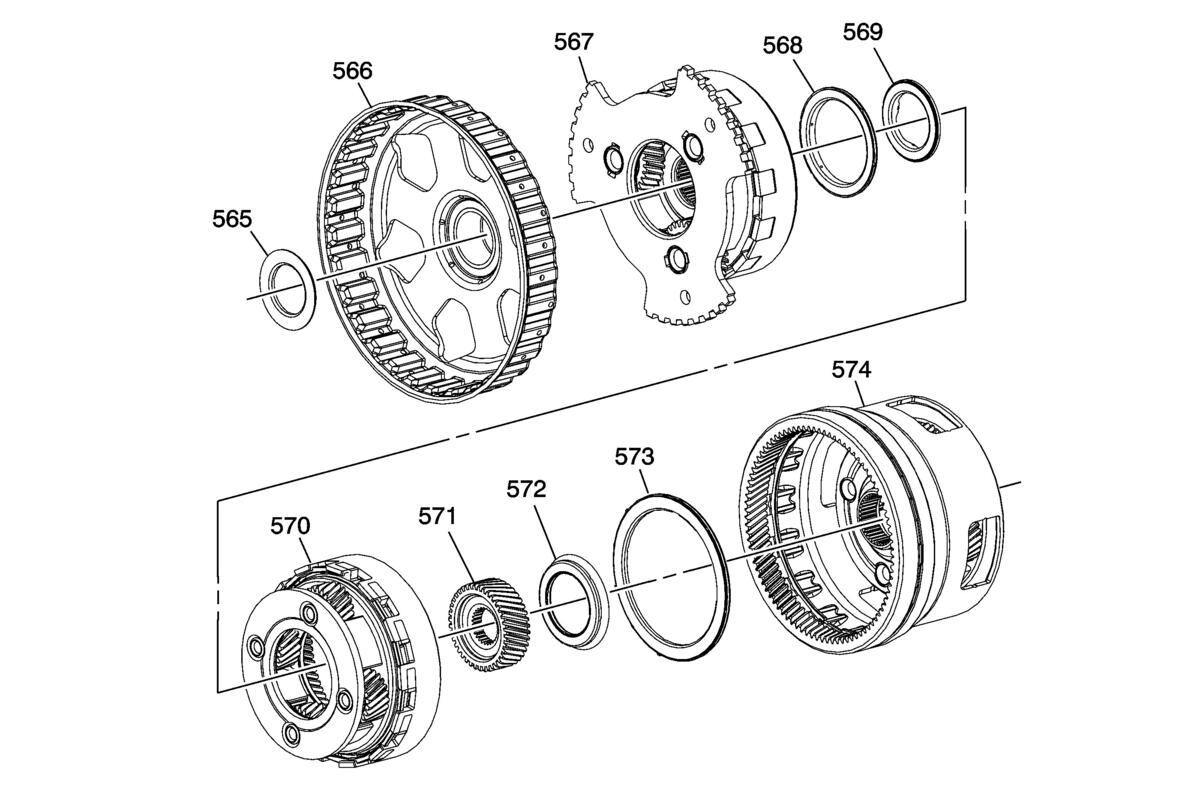

Input, Output and Reaction Gearsets
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 565 | Reaction Sun Gear Thrust Bearing Assembly |
| 566 | Reaction Sun Gear Assembly |
| 567 | Reaction Carrier Assembly |
| 568 | Input Carrier Thrust Bearing Assembly |
| 569 | Input Sun Gear Thrust Bearing Assembly |
| 570 | Input Carrier Assembly |
| 571 | Input Sun Gear |
| 572 | Input Sun Gear Thrust Bearing Assembly |
| 573 | Output Carrier Thrust Bearing Assembly |
| 574 | Output Carrier Assembly |
