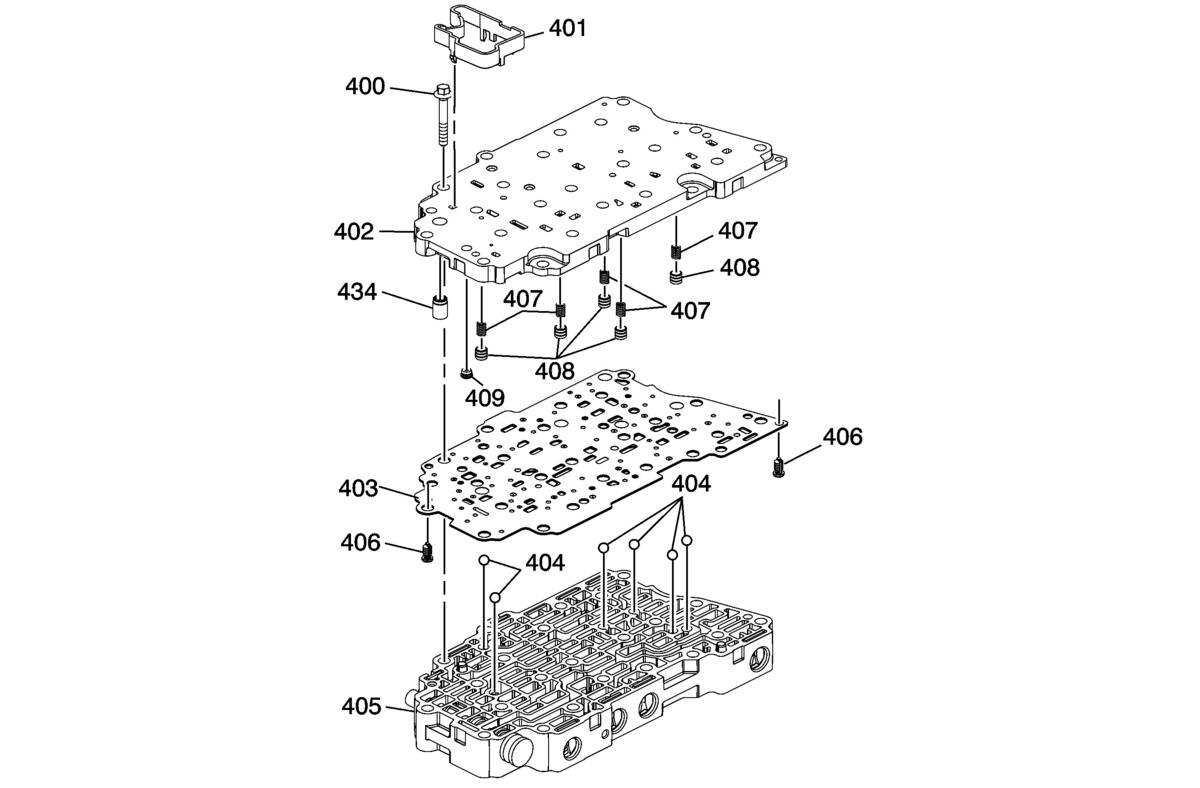

Control Valve Body Assembly (1 of 2)
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 400 | Control Valve Body Bolt |
| 401 | Control Solenoid Valve Support |
| 402 | Valve Channel Plate |
| 403 | Channel Plate to Valve Body Spacer Plate Assembly |
| 404 | Control Valve Body Ball Check Valve (Qty:6) |
| 405 | Control Valve Body Assembly |
| 406 | Control Valve Body Spacer Plate Retainer (Qty: 2) |
| 407 | Actuator Feed Accumulator Spring (Qty: 5) |
| 408 | Actuator Feed Accumulator Piston (Qty: 5) |
| 409 | Variable Hi and 2-3-4 Clutch Housing Valve Ball |
| 434 | Control Valve Channel Plate Ball Spring Assembly |
