Case and Associated Parts - Gen 3
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

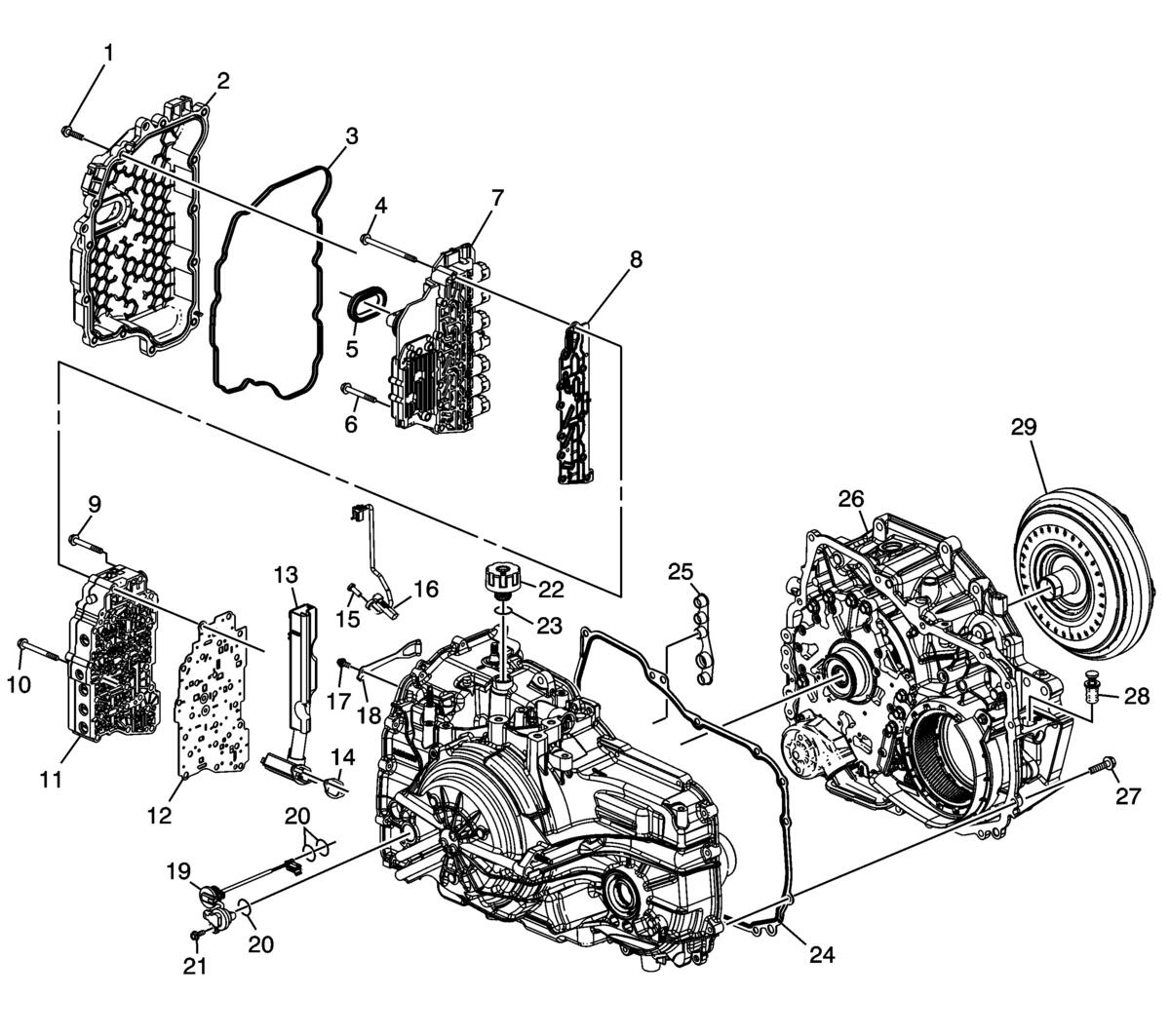

| Callout | Component Name |
|---|---|
| 1 | Control Valve Body Cover Bolt |
| 2 | Control Valve Body Cover Assembly |
| 3 | Control Valve Body Cover Gasket |
| 4 | Control Valve Body Bolt |
| 5 | Control Valve Body Cover Hole Seal |
| 6 | Control Solenoid Valve Heat Sink Bolt |
| 7 | Control Solenoid (w/Body and TCM) Valve Assembly |
| 8 | Control Valve Body Filter Plate Assembly |
| 9 | Control Valve Body Bolt |
| 10 | Control Valve Body Bolt |
| 11 | Control Valve Body Assembly |
| 12 | Control Valve Body Spacer Plate Assembly |
| 13 | A/Trans Fluid Level Control Valve |
| 14 | A/Trans Fluid Level Control Valve Gasket |
| 15 | A/Trans Output Speed Sensor Bolt |
| 16 | A/Trans Output Speed Sensor Assembly |
| 17 | Manual Shaft Detent Spring Bolt |
| 18 | Manual Shaft Detent Lever Spring Assembly |
| 19 | A/Trans Input Speed Sensor Assembly |
| 20 | A/Trans Input Speed Sensor Assembly O-Ring Seal |
| 21 | A/Trans Input Speed Sensor Bolt |
| 22 | Fill Cap |
| 23 | Fill Cap Seal |
| 24 | Torque Converter Housing Gasket |
| 25 | A/Trans Fluid Pump Seal Assembly |
| 26 | Torque Converter with Fluid Pump Housing Assembly |
| 27 | Torque Converter and Differential Housing Bolt |
| 28 | A/Trans Fluid Fill Tube Plug Assembly |
