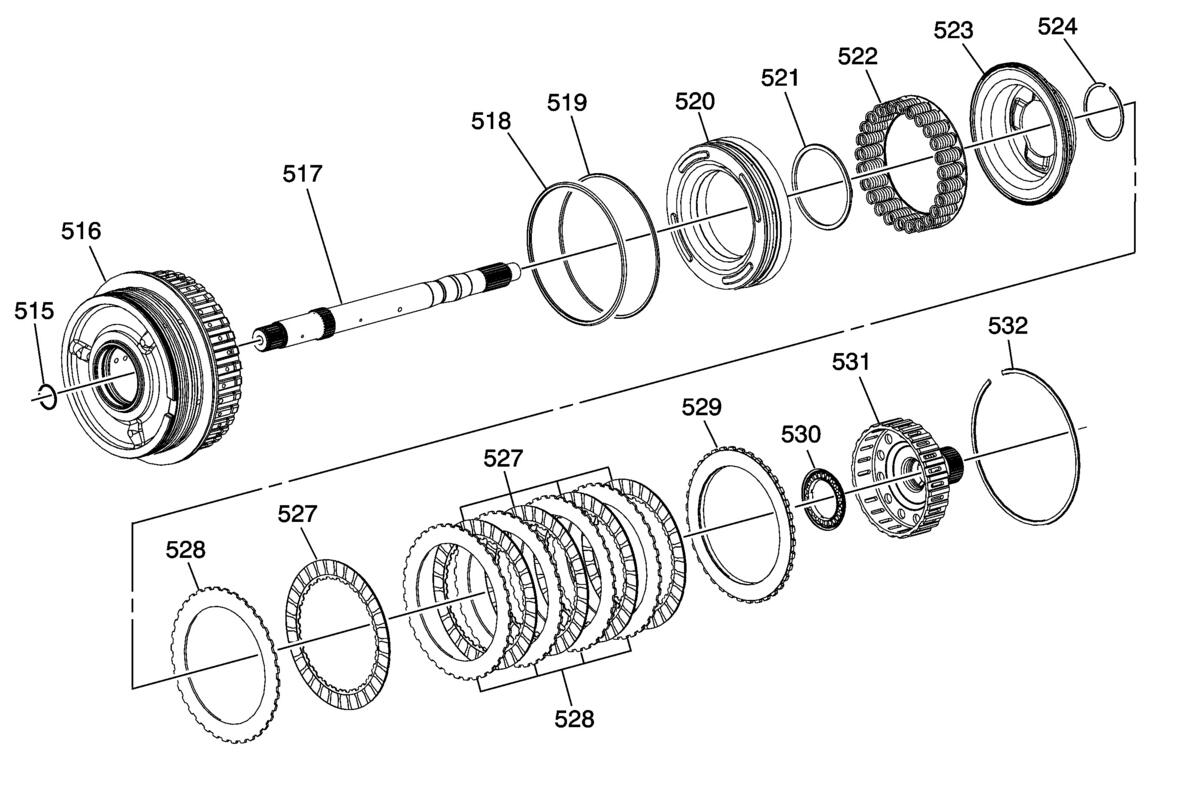

4 - 5 - 6 Clutch Assembly
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 515 | Turbine Shaft Retainer Ring |
| 516 | 3-5-Reverse and 4-5-6 Clutch Housing Assembly |
| 517 | Turbine Shaft |
| 518 | 4-5-6 Clutch Piston Outer Seal |
| 519 | 4-5-6 Clutch Piston Outer Seal |
| 520 | 4-5-6 Clutch Piston |
| 521 | 4-5-6 Clutch Piston Inner Seal |
| 522 | 4-5-6 Clutch Piston Return Spring Assembly |
| 523 | 4-5-6 Clutch Piston Fluid Dam Assembly |
| 524 | 4-5-6 Clutch Piston Fluid Dam Retainer Ring |
| 527 | 4-5-6 Clutch (w/Friction Material) Plate Assembly Gen 1 (Qty: 4), Gen 2 (Qty: 5) |
| 528 | 4-5-6 Clutch Plate - Gen 1 (Qty: 3), Gen 2 (Qty: 5) |
| 529 | 4-5-6 Clutch Backing Plate |
| 530 | Reaction Carrier Hub Thrust Bearing Assembly |
| 531 | Reaction Carrier Hub Assembly |
| 532 | 4-5-6 Clutch Backing Plate Retainer Ring |
