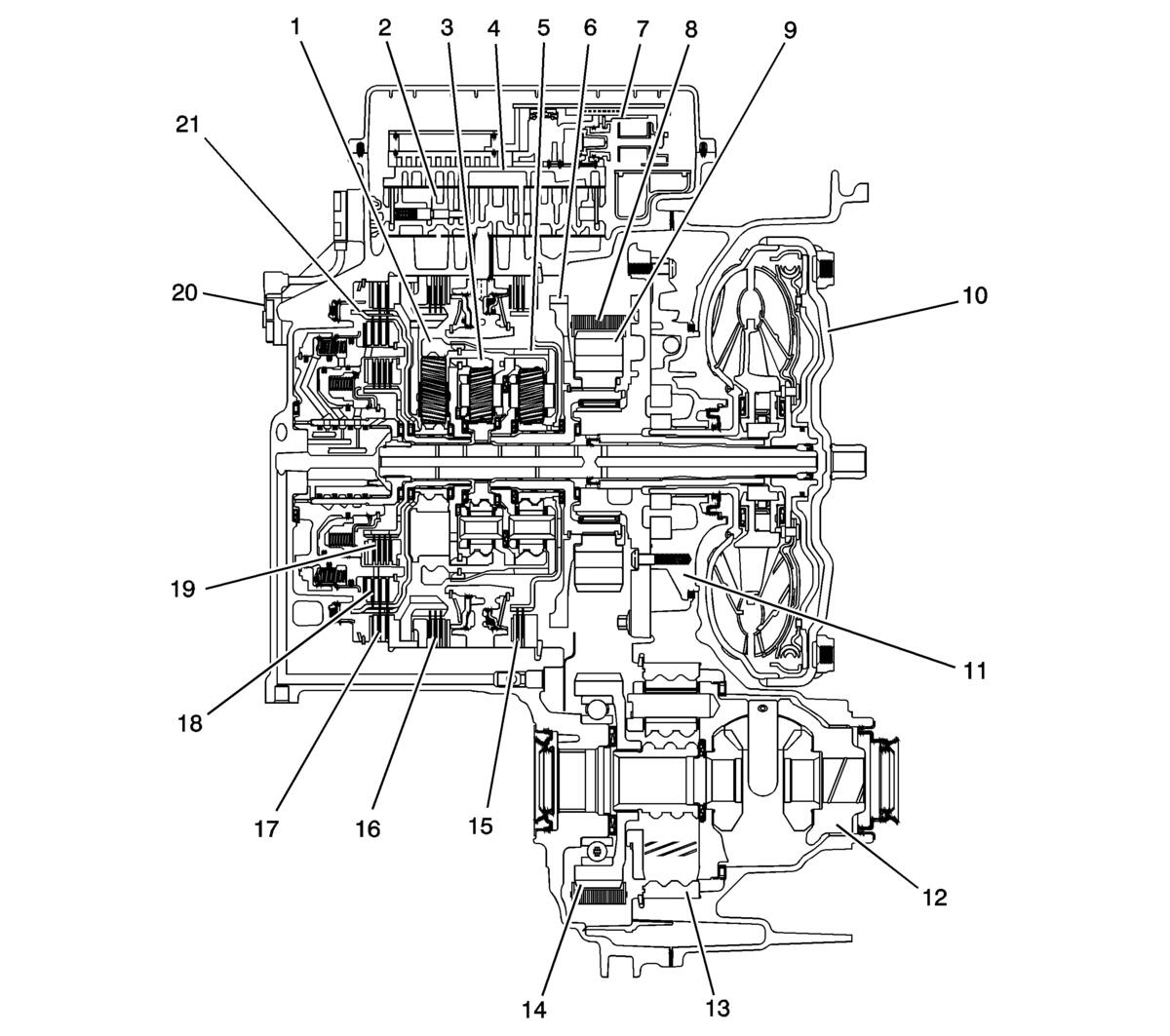

Component Location
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 1 | Reaction Carrier Assembly |
| 2 | Control Valve Body Assembly |
| 3 | Input Carrier Assembly |
| 4 | Valve Channel Plate |
| 5 | Output Carrier Assembly |
| 6 | Park Gear |
| 7 | Control Solenoid (w/Body and TCM) Valve Assembly |
| 8 | Drive Link Assembly |
| 9 | Drive Sprocket |
| 10 | Torque Converter Assembly |
| 11 | A/Trans Fluid Pump Assembly |
| 12 | Differential Carrier Assembly |
| 13 | Front Differential Ring Gear |
| 14 | Driven Sprocket |
| 15 | 1 - 2 - 3 - 4 Clutch Assembly |
| 16 | Low and Reverse Clutch Assembly |
| 17 | 2 - 6 Clutch Assembly |
| 18 | 3 - 5 Reverse Clutch Assembly |
| 19 | 4 - 5 - 6 Clutch Assembly |
| 20 | A/Trans Input Speed Sensor Assembly |
| 21 | Reaction Sun Gear Assembly |
