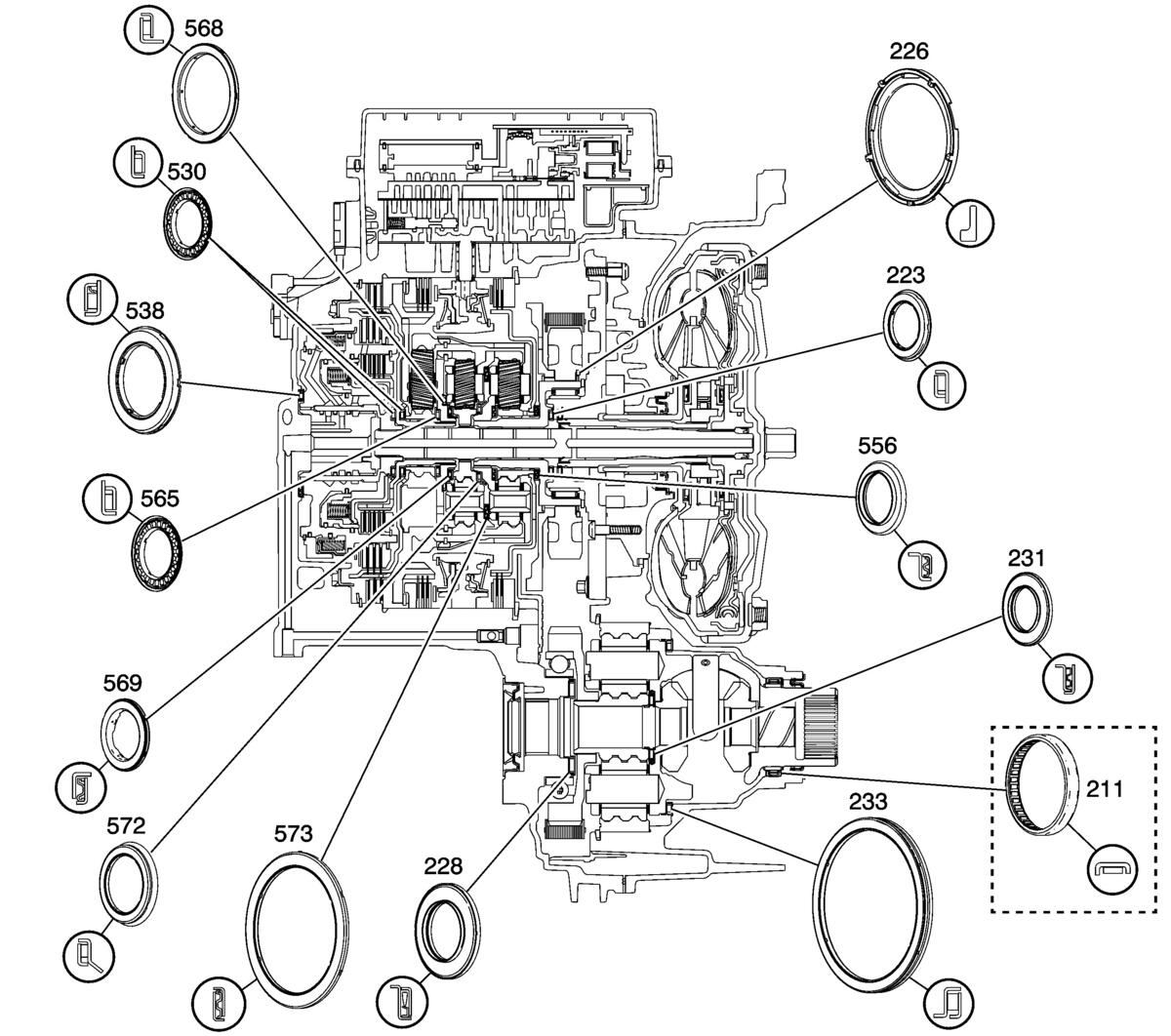

Bushing, Bearing, and Washer Locations
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
| Callout | Component Name |
|---|---|
| 211 | Front Differential Carrier Bearing Assembly - AWD Models |
| 223 | Drive Spocket Bearing Assembly |
| 226 | Drive Sprocket Thrust Washer |
| 228 | Drive Sprocket Bearing Assembly |
| 231 | Differential Sun Gear to Differential Housing Bearing Assembly |
| 233 | Front Differential Carrier Bearing Assembly |
| 530 | Reaction Carrier Hub Thrust Bearing Assembly |
| 538 | 3 - 5 - Reverse and 4 - 5 - 6 Clutch Housing Thrust Bearing |
| 556 | Output Sun Thrust Bearing Assembly |
| 565 | Reaction Sun Gear Thrust Bearing Assembly |
| 568 | Input Carrier Thrust Bearing Assembly |
| 569 | Input Sun Gear Thrust Bearing Assembly |
| 572 | Input Sun Gear Thrust Bearing Assembly |
| 573 | Output Carrier Thrust Bearing Assembly |
