Installation Procedure

WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

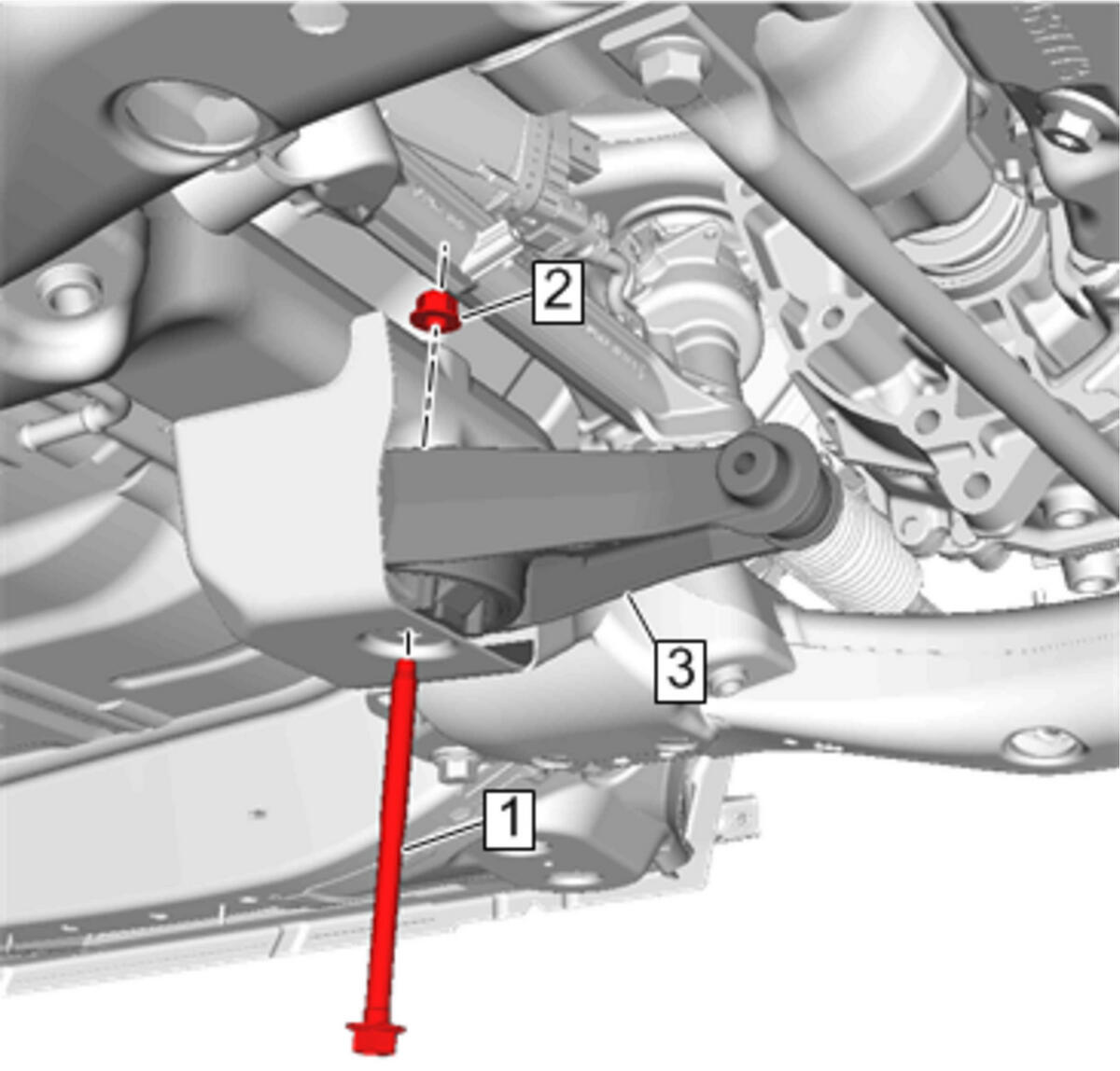

Using the outline made by the spray paint or marker, position the transmission strut (3) to the drivetrain and front suspension cradle.

CAUTION:

Refer to Torque-to-Yield Fastener Caution .

Install the NEW transmission strut to bracket through bolt (1) and nut (2) then tighten to 100 N.m (74 lb ft) plus 120 to 135 degrees.
Perform the Powertrain Mount Balancing - Lower procedure. Refer to the appropriate engine service information.
Remove the jack stand.
Install the transmission mount strut bracket. Transmission Mount Strut Bracket Replacement (Front Wheel Drive) , or Transmission Mount Strut Bracket Replacement (All Wheel Drive)
