Removal Procedure
WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.
- Raise and support the vehicle. Lifting and Jacking the Vehicle

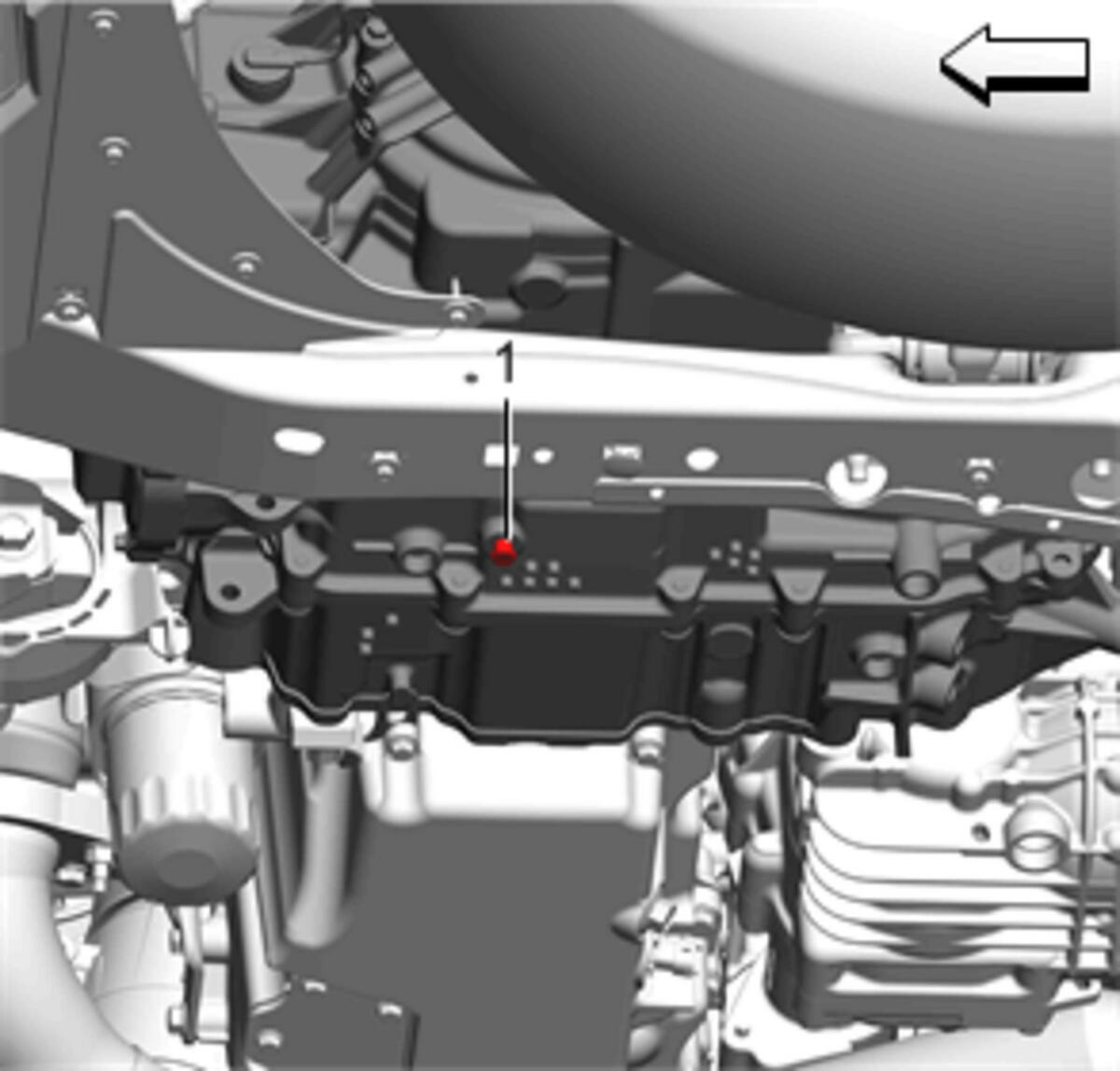

Remove the fluid drain plug (1).
- Drain transmission fluid into a suitable container.
- Install the fluid drain plug (1) and tighten to 12 N.m (106 lb in).
CAUTION:
Refer to Component Fastener Tightening Caution .
