Automatic Transmission Auxiliary Fluid Pump Outlet Pipe Replacement

WARNING: This page is about a different car, the 2024 Chevrolet Equinox. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of GENERAL MOTORS COMPANY

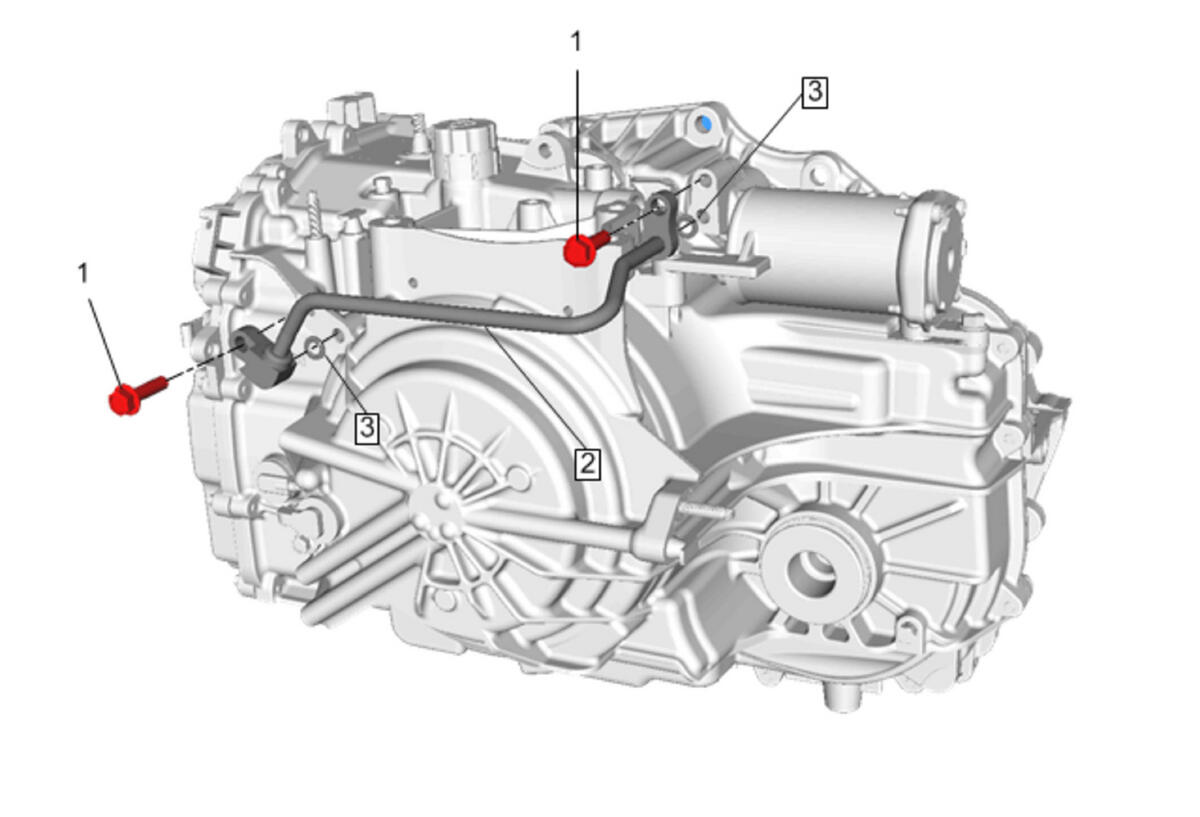

Callout	Component Name
Preliminary Procedures Battery Tray Replacement Front Wheelhouse Liner Replacement - Left Side (Equinox) , or Front Wheelhouse Liner Replacement - Left Side (Terrain)
1	A/Trans Auxiliary Fluid Accumulator Bolt [2x] CAUTION: Refer to Fastener Caution . Procedure Fasten the auxiliary fluid pump pipe to auxiliary accumulator and tighten bolt just enough to hold in place. Align auxiliary fluid pump pipe to case and tighten bolt just enough to hold in place. Check the transmission fluid level. Transmission Fluid Level and Condition Check Tighten 22 N.m (16 lb ft)
2	Auxiliary Fluid Pump Outlet Pipe
3	Auxiliary Fluid Pump Outlet Seal [2x] NOTE: Install NEW seals.
