S46B Liftgate Unlatch Switch

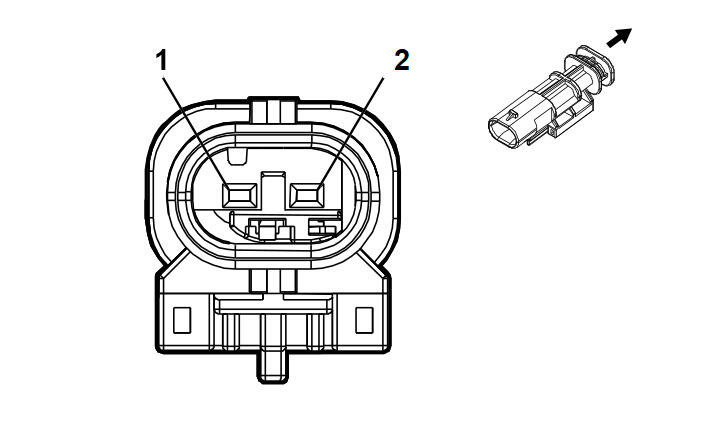

Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-17 (L-GN) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 0.5 |
BK BK |
2550 5797 |
Ground Rear Closure Handle Switch Open Signal |
I I |
TB4 TB5/TC2 |
| 2 | 0.5 0.35 |
BK BK / VT |
5797 4656 |
Rear Closure Handle Switch Open Signal Rear Closure Object Sensor Low Reference |
I I |
TB4 TB5/TC2 |
