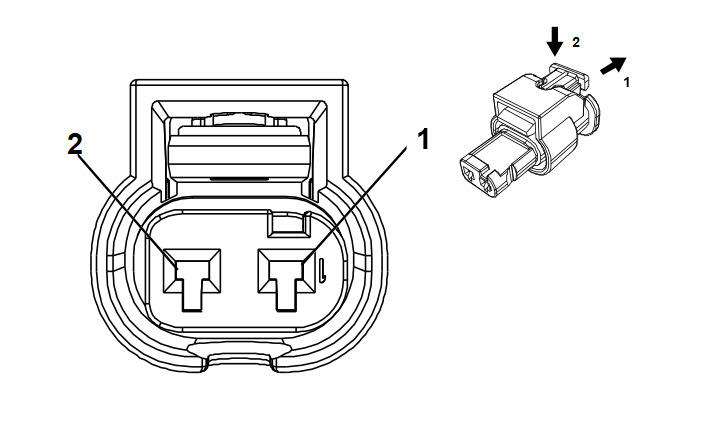

Q44 Engine Oil Pressure Control Solenoid Valve
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Engine Oil Pressure Control Solenoid Valve Jumper Wiring Harness
- OEM Connector: 13587570
- Service Connector: Service by Harness - See Part Catalog
- Description: 2-Way F 1.2 MCON Series, Sealed (BN)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
No Tool Required |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
- |
VT / BU |
5293 |
Powertrain Main Relay Fused Supply Voltage 4 |
I |
- |
| 2 |
- |
BU |
179 |
Engine Oil Pump Control |
I |
- |
