M96A Active Grille Air Shutter 1 Actuator
 Courtesy of GENERAL MOTORS COMPANY
|

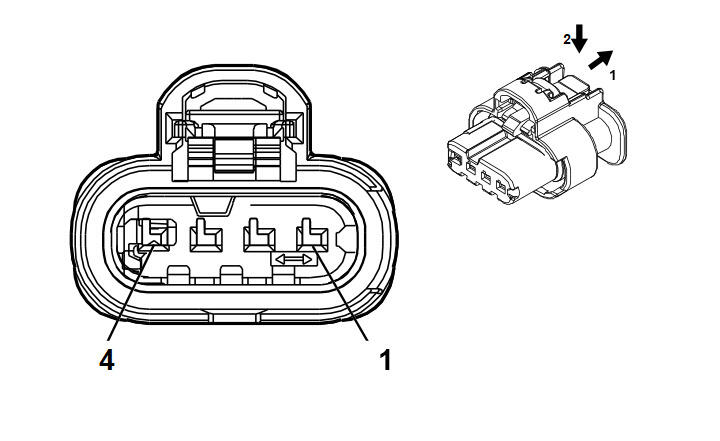

Connector Part Information
- Harness Type: Radiator Shutter Wiring Harness
- OEM Connector: 13514087
- Service Connector: Service by Harness - See Part Catalog
- Description: 4-Way F 1.2 MCON-CB Series, Sealed (BK)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-16 (L-GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.35 |
VT / BU |
5705 |
Powertrain Main Relay Control |
I |
|
| 2 |
0.35 |
GN / VT |
4621 |
Engine Control Module LIN Bus 1 |
I |
|
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
BK |
1150 |
Ground |
I |
|
