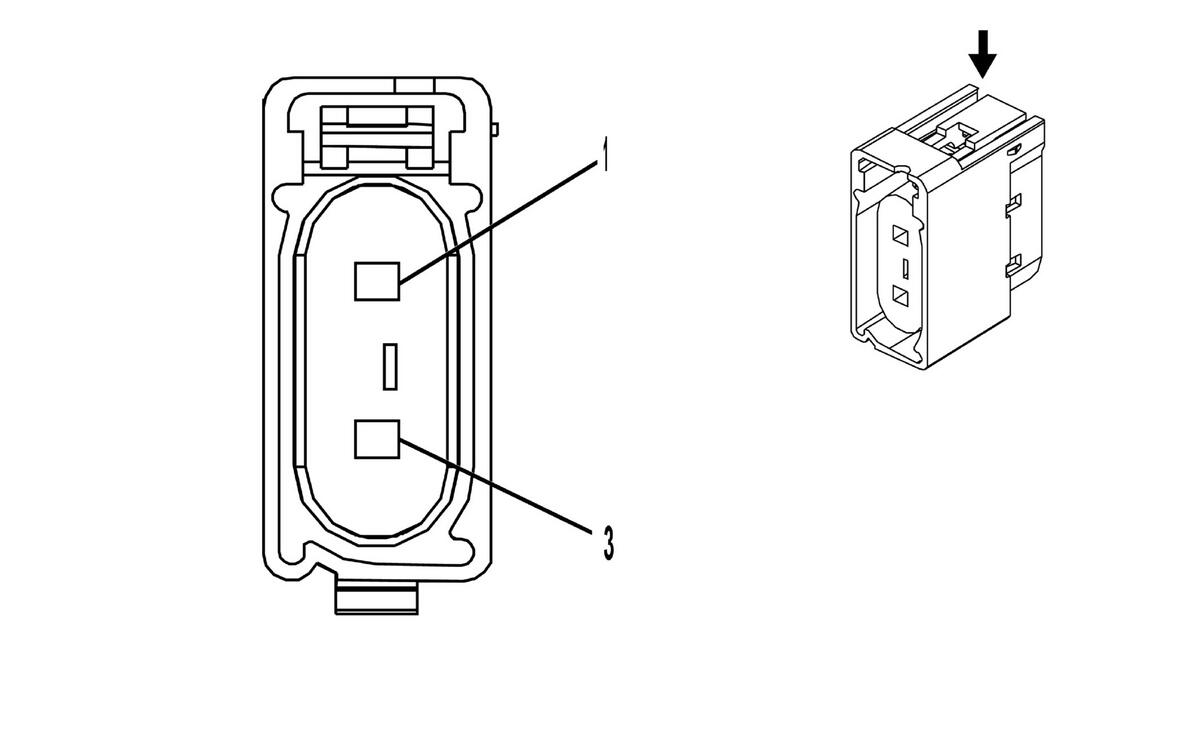

E4RF Turn Signal Lamp - Right Front
Connector Part Information
|
Terminal Part Information
| Terminal Type ID | Terminated Lead | Diagnostic Test Probe | Terminal Removal Tool |
|---|---|---|---|
| I | Not required | J-35616-14 (GN) | No Tool Required |
| Pin | Size | Color | Circuit | Function | Terminal Type ID | Option |
|---|---|---|---|---|---|---|
| 1 | 0.5 0.5 |
BK BK |
2050 2050 |
Ground Ground |
I I |
T7E+TUI+(TUJ/T3U) T7E+TUI-T3U-TUJ |
| 2 | - | - | - | Not Occupied | - | - |
| 3 | 0.35 | BK | 2050 | Ground | I | T7E+TUI |
