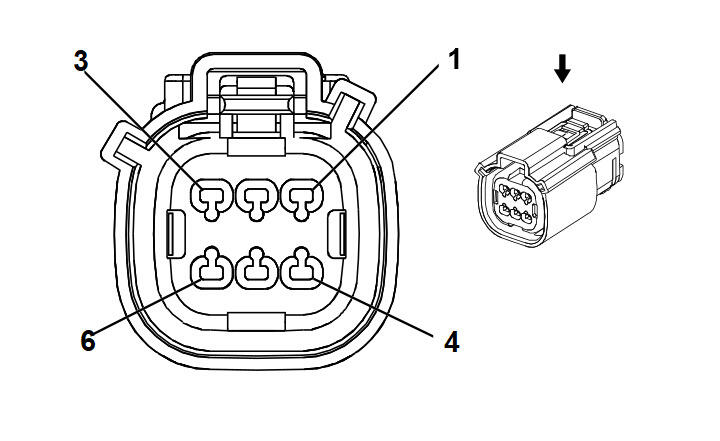

E42L Tail Lamp Assembly - Left X1 (TDJ)
 Courtesy of GENERAL MOTORS COMPANY
|
Connector Part Information
- Harness Type: Body Wiring Harness
- OEM Connector: 13592503
- Service Connector: 19301527
- Description: 6-Way F 1.5 Series, Sealed (GY)
|
Terminal Part Information
| Terminal Type ID |
Terminated Lead |
Diagnostic Test Probe |
Terminal Removal Tool |
| I |
Not required |
J-35616-14 (GN) |
No Tool Required |
| Pin |
Size |
Color |
Circuit |
Function |
Terminal Type ID |
Option |
| 1 |
0.5 |
BK |
2550 |
Ground |
I |
TDJ-MAM |
| 2 |
0.5 |
YE / BU |
18 |
Left Rear Stop/Turn Signal Lamp Control |
I |
TDJ-MAM |
| 3 |
- |
- |
- |
Not Occupied |
- |
- |
| 4 |
0.35 |
WH / YE |
1204 |
Left Park Lamp Control 2 |
I |
TDJ-MAM |
| 5 |
- |
- |
- |
Not Occupied |
- |
- |
| 6 |
0.35 |
BN / YE |
1968 |
Left Stop/Tail Lamp Feedback Signal |
I |
TDJ-MAM |
