Installation Procedure

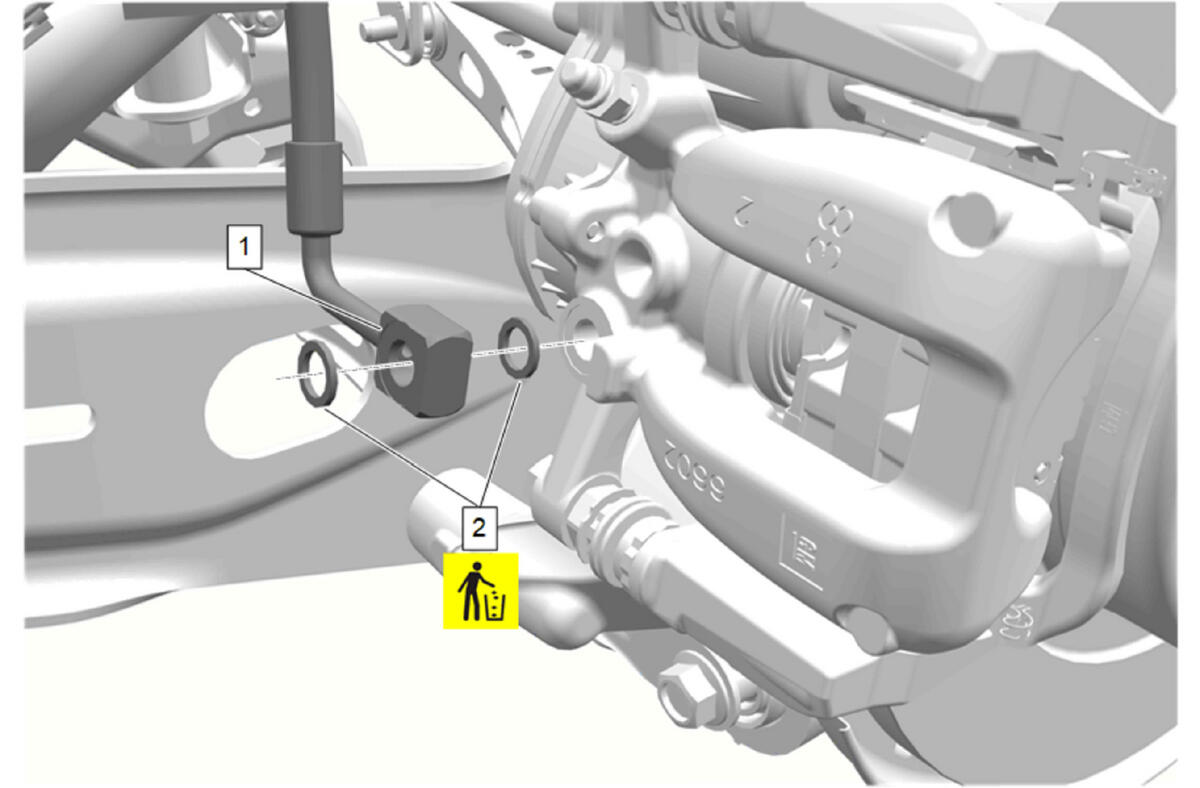

Rear Brake Hose (1) - Install
Rear Brake Hose Washer (2) @ Rear Brake Hose (1) - Install NEW [2x]
- CAUTION:
Refer to Fastener Caution .
Rear Brake Hose Fitting Bolt (1) - Install and tighten 40 N.m (30 lb ft)
Rear Brake Hose Retainer (1) - Install
Front Brake Pipe Nut (1) - Install and tighten 18 N.m (13 lb ft)
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
- Install the tire and wheel assembly. Tire and Wheel Removal and Installation
