Installation Procedure

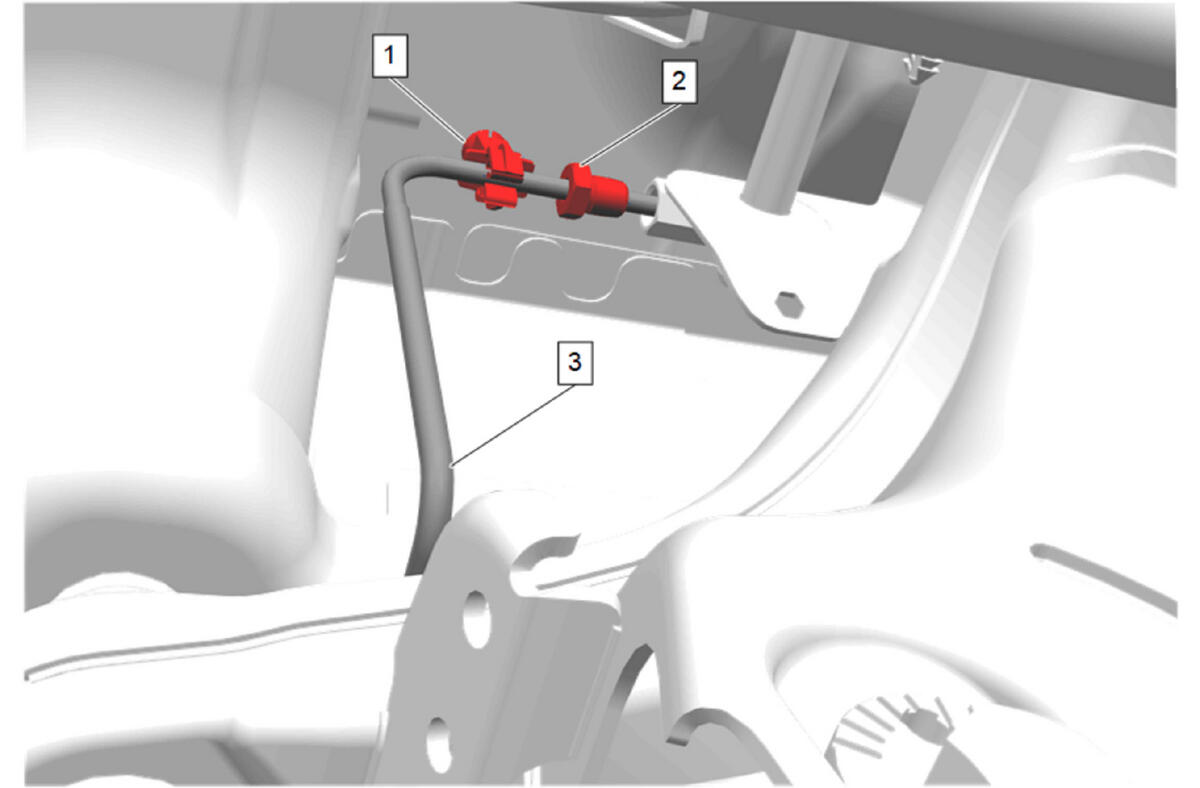

Maneuver the right rear brake front pipe (3) into the vehicle.
- Remove the plug from the rear brake crossover pipe inlet.
- Front Brake Pipe Nut (2) - Install and tighten - Rear Brake Crossover Pipe Replacement
- Rear Brake Rear Pipe Clip (1) - Engage
Brake and Fuel Pipe Clip (1) - Engage [2x]
- Fuel Tank - Install - Fuel Tank Replacement (AWD) , or Fuel Tank Replacement (FWD)
Rear Brake Intermediate Pipe Clip (2) - Engage [2x]
- Front Brake and Fuel Feed Front and Evaporative Emission Pipe Clip (1) - Engage [5x]
Front Brake and Fuel Feed Front and Evaporative Emission Pipe Clip (2) - Engage
- Rear Brake Front Pipe Clip (1) - Engage
- Underbody Rear Air Deflector - Install - Underbody Rear Air Deflector Replacement
Brake and Fuel Pipe Shield (1) - Install

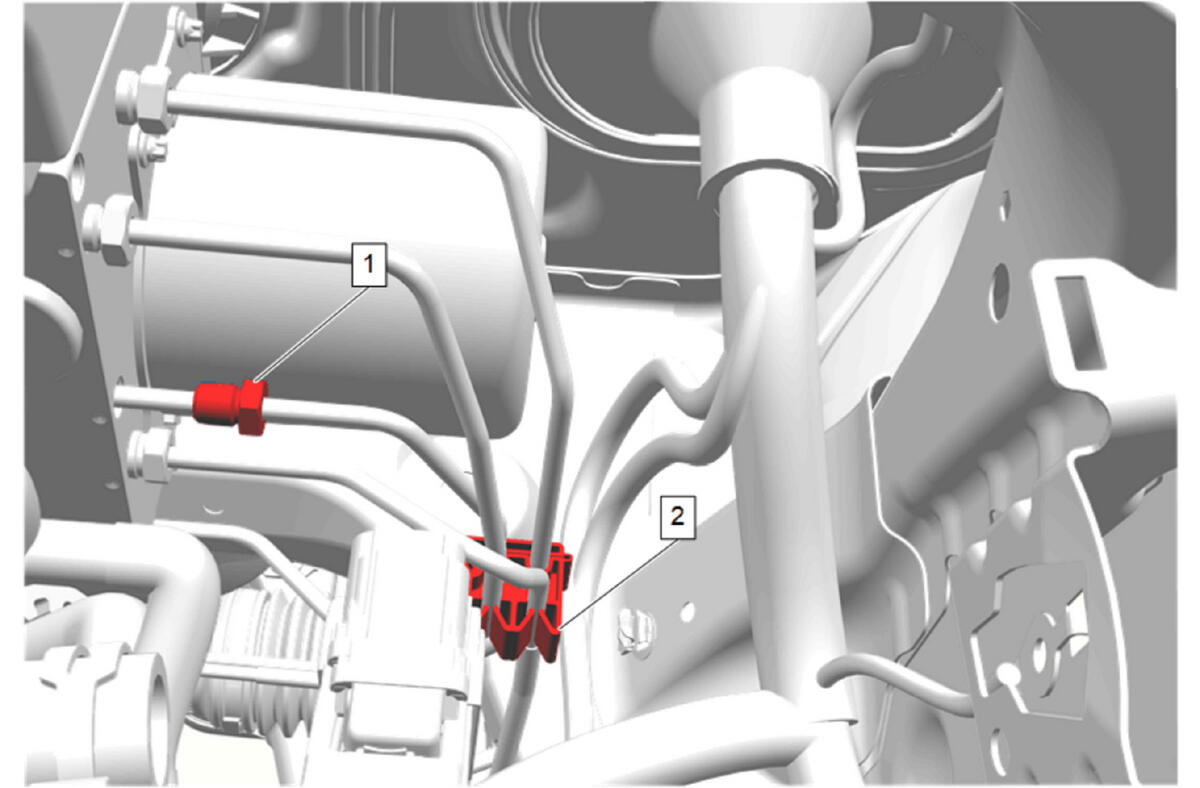

Front Brake Pipe Clip (2) - Engage
- Remove the cap from the brake master cylinder outlet.
- Front Brake Pipe Nut (1) - Install and tighten - Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module
- Rear Wheelhouse Liner-Left Side - Install - Rear Wheelhouse Liner Replacement - Left Side (Equinox) , or Rear Wheelhouse Liner Replacement - Left Side (Terrain)
- Radiator Surge Tank - Install - Radiator Surge Tank Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
- Check the brake system for leaks.
CAUTION:
