Installation Procedure

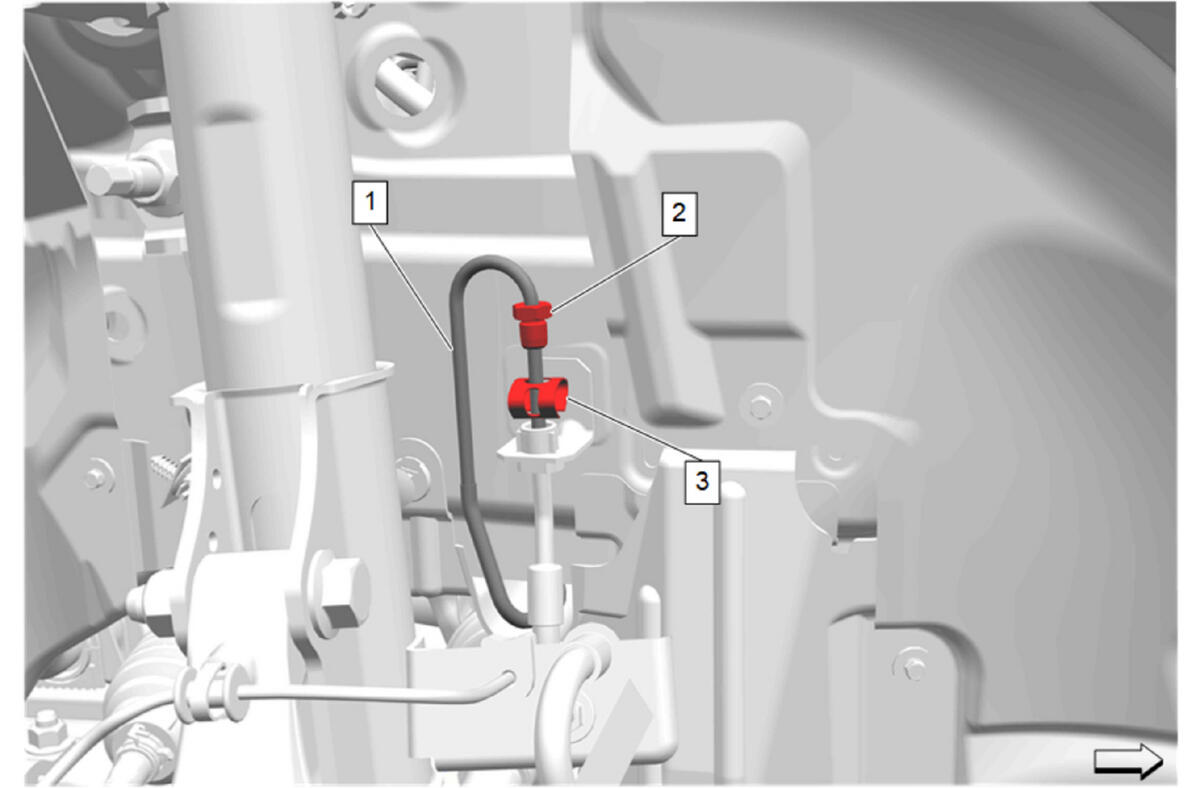

Maneuver the right front brake pipe (1) into the vehicle.
- Remove the plug from the front brake hose inlet.
- Front Brake Hose Retainer (3) - Install
- Front Brake Pipe Nut (2) - Install and tighten - Front Brake Hose Replacement

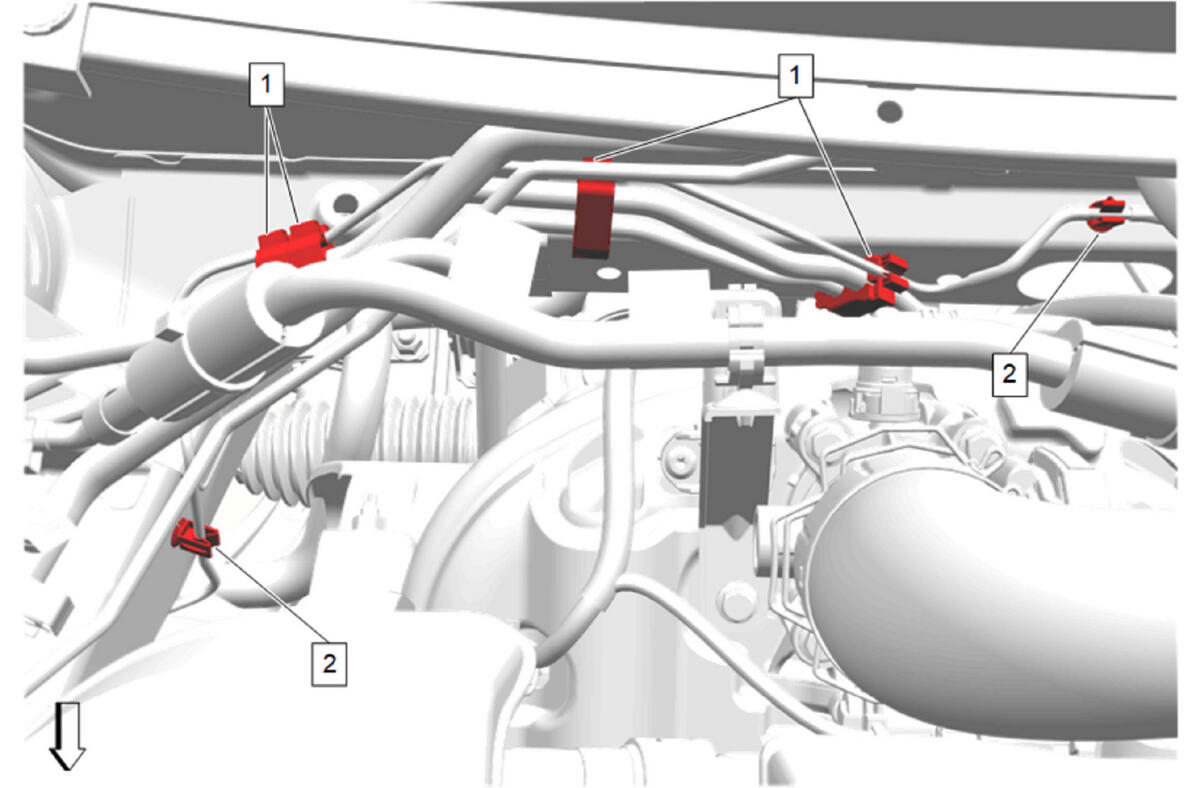

Front Brake Pipe Clip (2) - Engage [2x]
- Fuel Feed and Evaporative Emission and Return Front Pipe Clip (1) - Engage [4x]
Front Brake Pipe Clip (2) - Engage

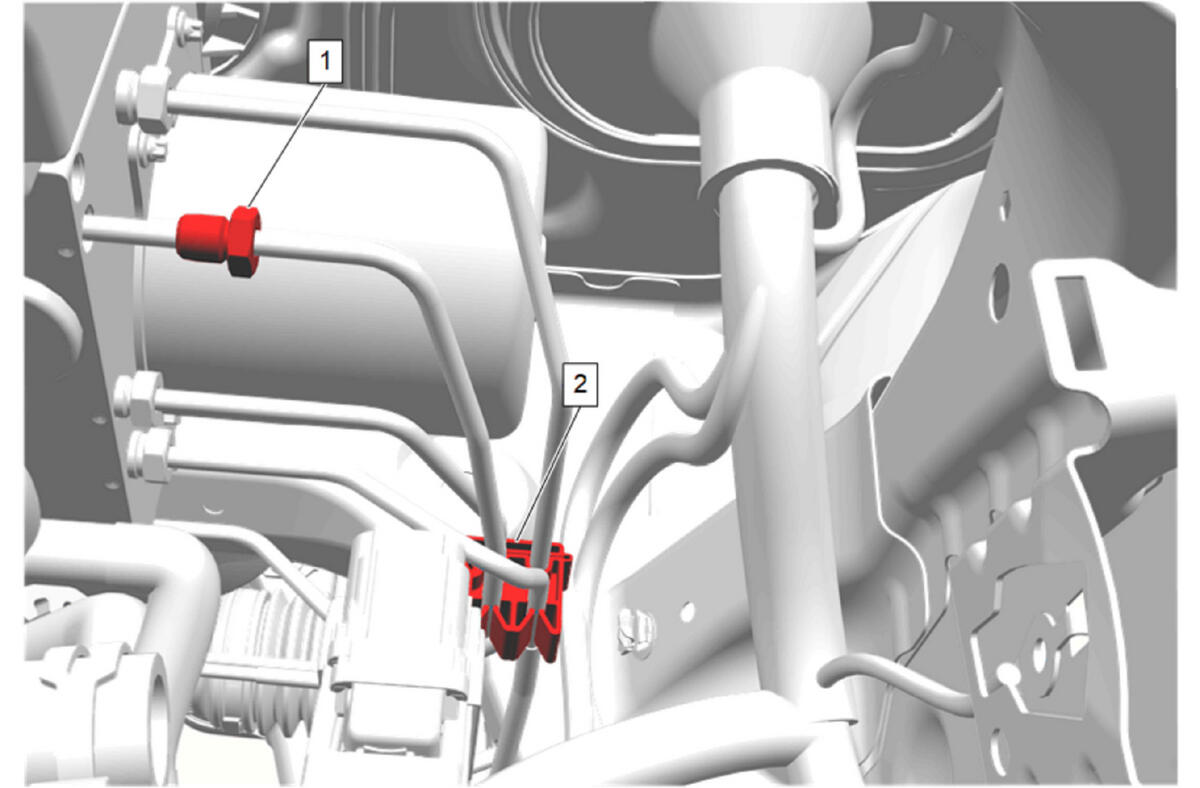

- Remove the cap from the brake master cylinder outlet.
- Front Brake Pipe Nut (1) - Install and tighten - Brake Master Cylinder Replacement - With Power Brake Booster and Electronic Brake Control Module
- Front Wheelhouse Liner-Right Side - Install - Front Wheelhouse Liner Replacement - Right Side (Equinox)
- Radiator Surge Tank - Install - Radiator Surge Tank Replacement
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
- Bleed the brake system. Hydraulic Brake System Bleeding (Manual) , or Hydraulic Brake System Bleeding (Pressure)
- Check the brake system for leaks.
