Installation Procedure
Lubricate the brake master cylinder reservoir seals (1) with GM approved brake fluid from a clean, sealed brake fluid container. Adhesives, Fluids, Lubricants, and Sealers
- Brake Master Cylinder Reservoir Grommet (1) - Install NEW [3x]
Brake Master Cylinder Reservoir (1) - Install
- CAUTION:
Refer to Fastener Caution .

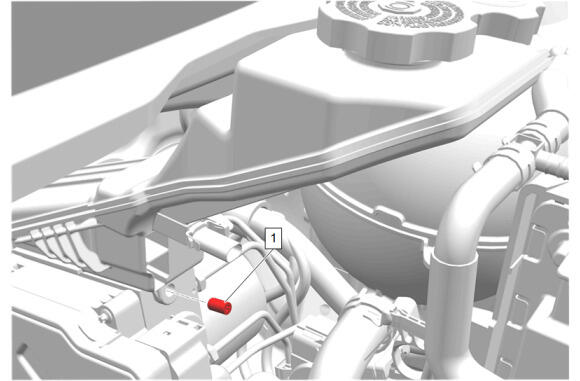

Brake Master Cylinder Reservoir Bolt (1) - Install and tighten 5.5 N.m (49 lb in)
Electrical Connector (1) @ Brake Fluid Level Sensor - Connect
- Connect the battery negative cable. Battery Negative Cable Disconnection and Connection (KL9)
- Fill the brake master cylinder reservoir to the maximum-full level with GM approved brake fluid from a clean, sealed brake fluid container. Brake Master Cylinder Reservoir Filling
