Underbody Front Air Deflector Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

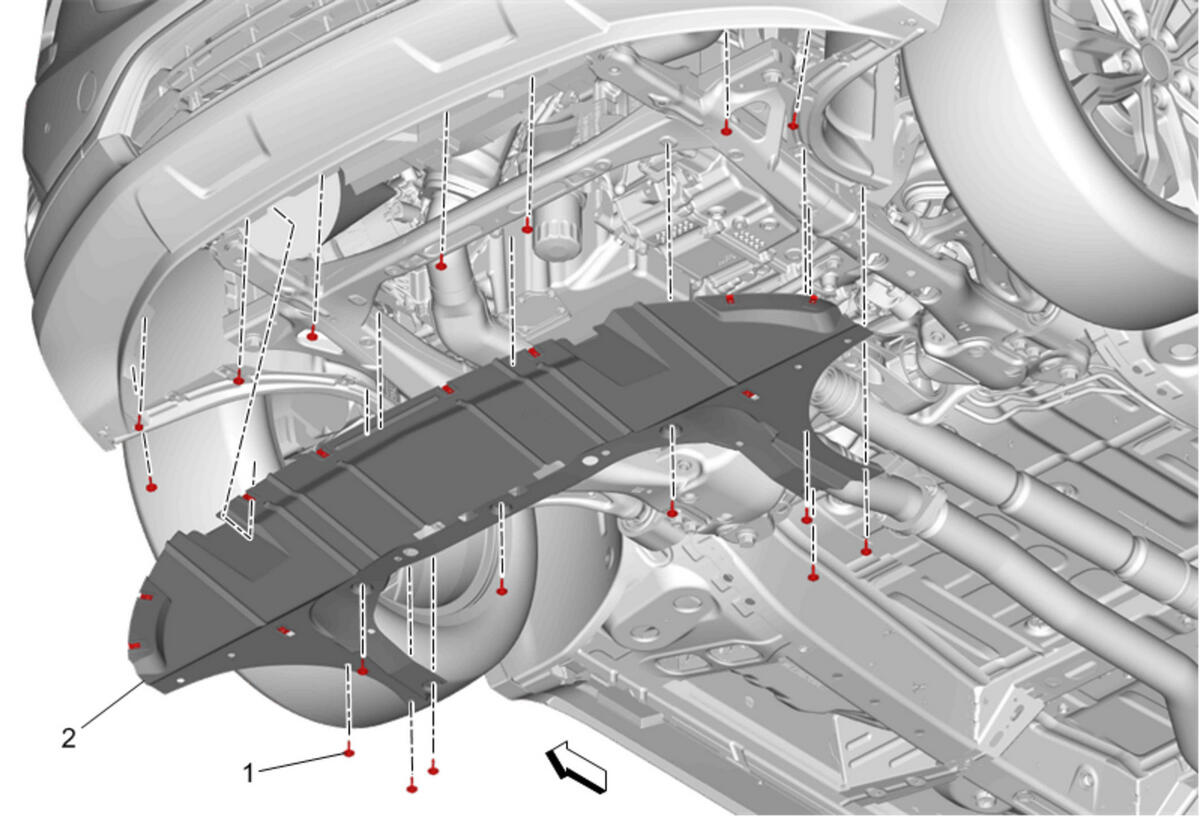

Callout	Component Name
Preliminary Procedures  Raise and support the vehicle. Lifting and Jacking the Vehicle Front Tire Front Air Deflector Replacement (Equinox) , or Front Tire Front Air Deflector Replacement (Terrain)
1	Front Compartment Air Deflector Bolt [17x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Underbody Front Air Deflector Procedure  Pull rearward and down to remove. Remove the support and lower the vehicle.
