Rear Wheelhouse Liner Replacement - Right Side (Terrain)

Courtesy of GENERAL MOTORS COMPANY

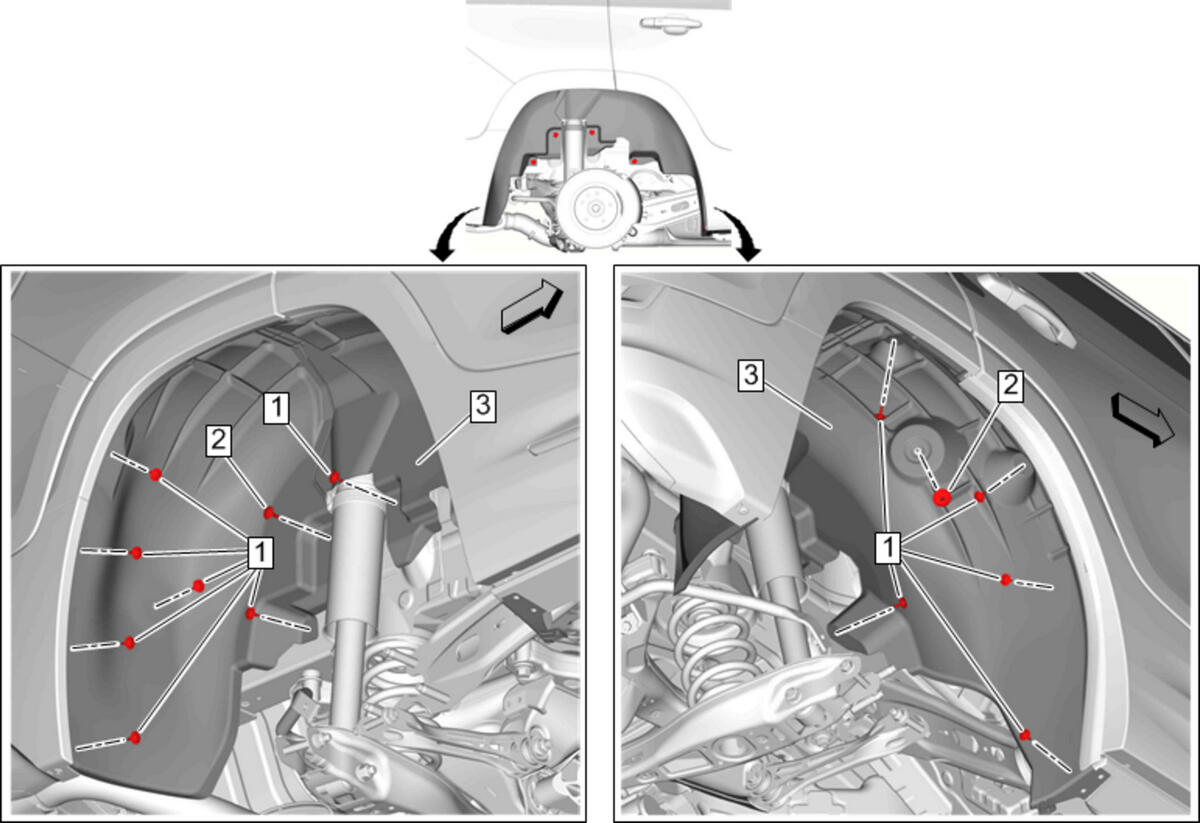

Callout	Component Name
Preliminary Procedures  Remove the tire and wheel assembly. Tire and Wheel Removal and Installation Rear Tire Front Air Deflector Replacement (Equinox) , or Rear Tire Front Air Deflector Replacement (Terrain)
1	Rear Wheelhouse Liner Bolt [12x] CAUTION: Refer to Fastener Caution . Tighten  2.5 N.m (22 lb in)
2	Rear Wheelhouse Liner Retainer [2x]
3	Rear Wheelhouse Liner - Right Side Procedure  Install the tire and wheel assembly. Tire and Wheel Removal and Installation
