Air Inlet Grille Panel Water Deflector Replacement

Courtesy of GENERAL MOTORS COMPANY

Callout	Component Name
Preliminary Procedure  Air Inlet Grille Panel Replacement

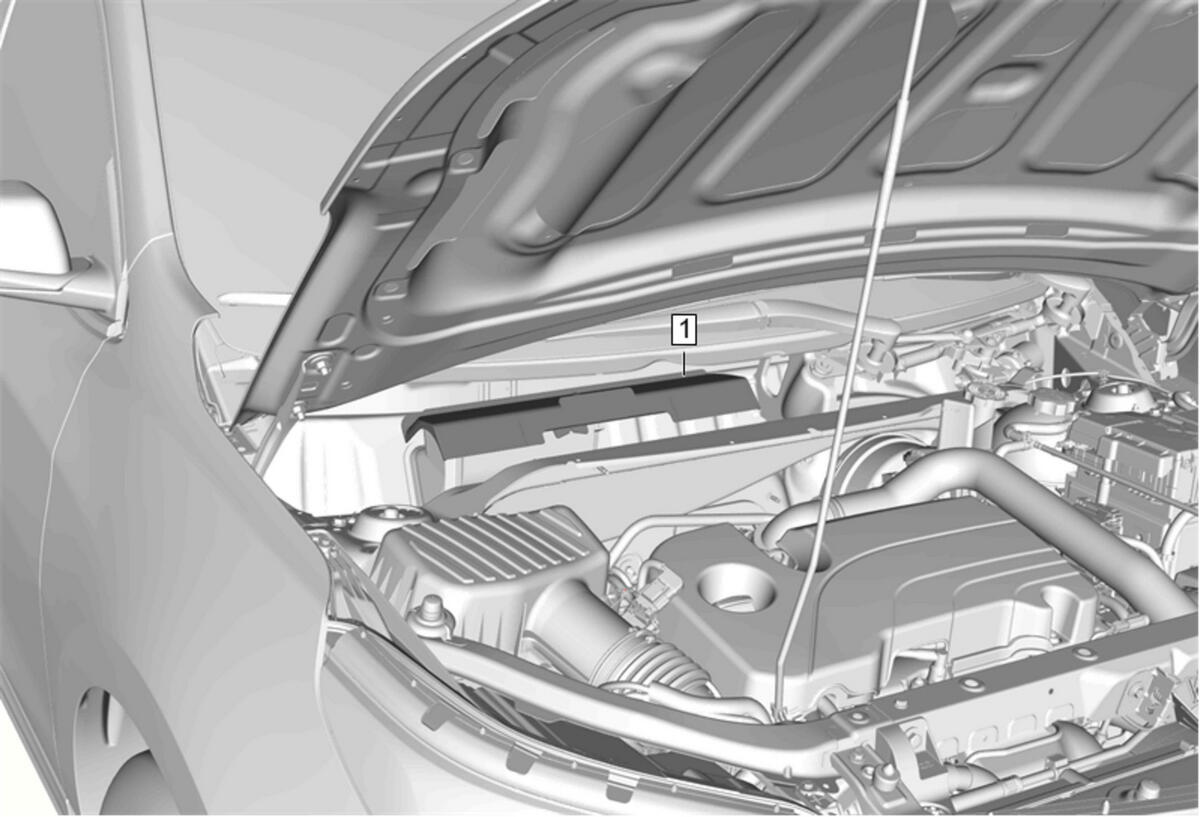

1	Air Inlet Grille Panel Water Deflector Procedure  Lift up the front edge of the water deflector, slide the water deflector forward from the plenum.
