Rear Side Door Below Belt Rear Auxiliary Weatherstrip Replacement

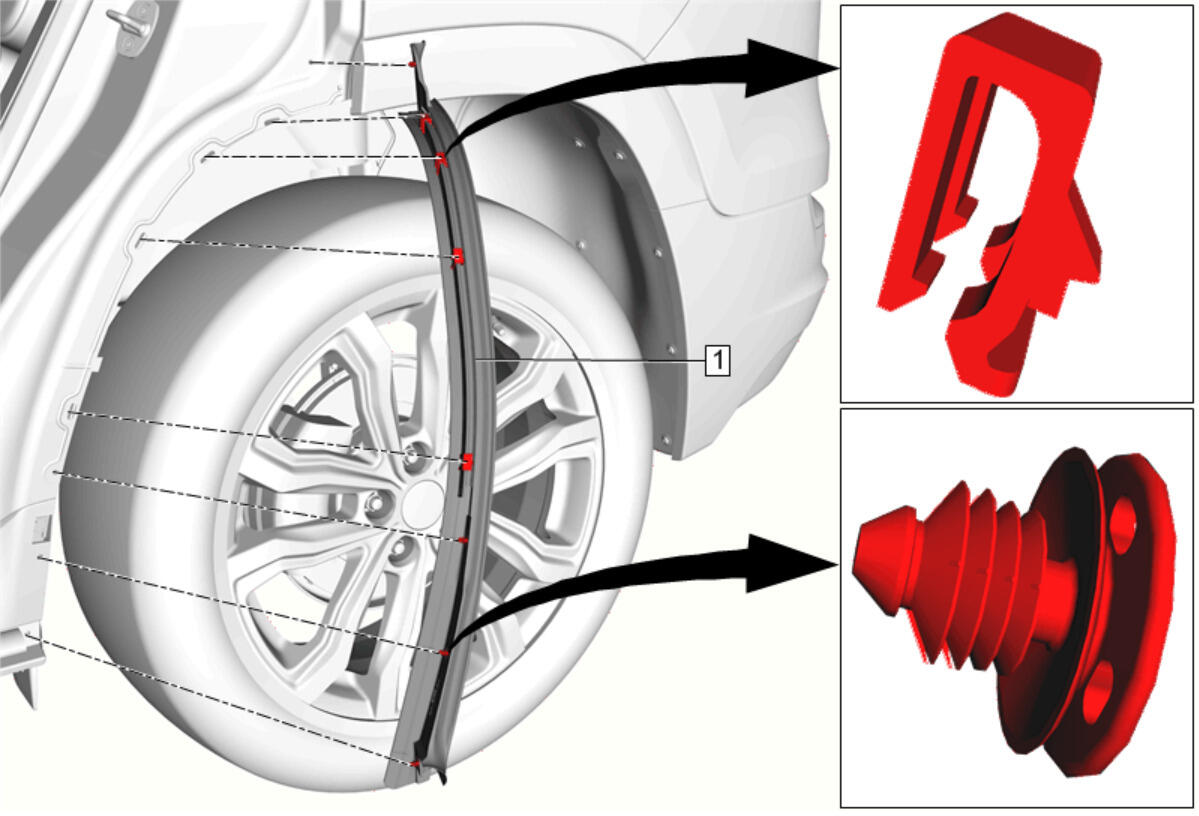

GM4675370Courtesy of GENERAL MOTORS COMPANY
Callout Component Name
1 Rear Side Door Below Belt Rear Auxiliary Weatherstrip
Procedure
Place the door in the full open position to service the weatherstrip.
NOTE:

With a suitable trim release tool, release the retainers securing the rear side door below belt rear auxiliary weatherstrip.
