Liftgate Adjust Bumper Replacement (Terrain)

Courtesy of GENERAL MOTORS COMPANY

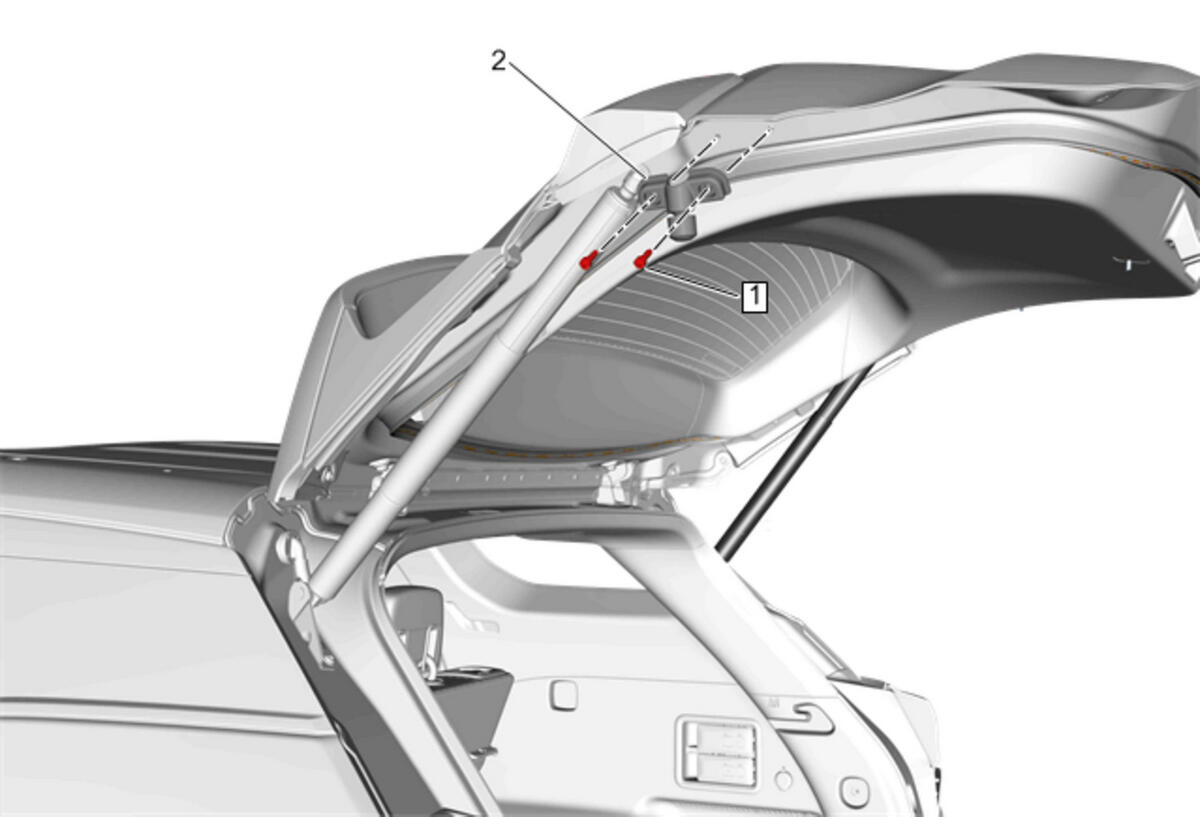

Callout	Component Name
1	Liftgate Adjust Bumper Bolt [2x] CAUTION: Refer to Fastener Caution . Tighten  6 N.m (53 lb in)
2	Liftgate Adjust Bumper
