Home >> GMC >> 2024 >> Terrain SLT, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Displays And Gauges >> Schematic Wiring Diagrams >> Instrument Cluster Wiring Schematics >> Air Temperature and Driver Information Center

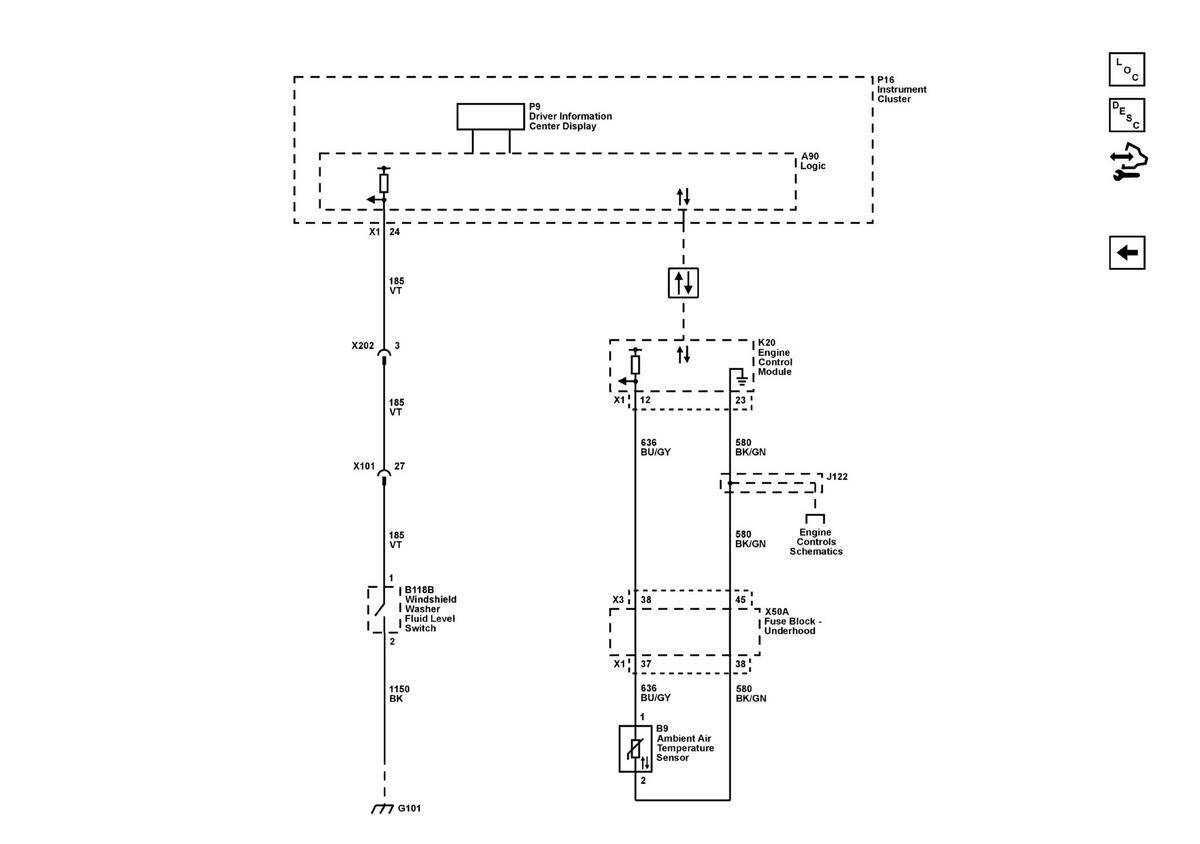

Air Temperature and Driver Information Center

GM6228423

Courtesy of GENERAL MOTORS COMPANY
