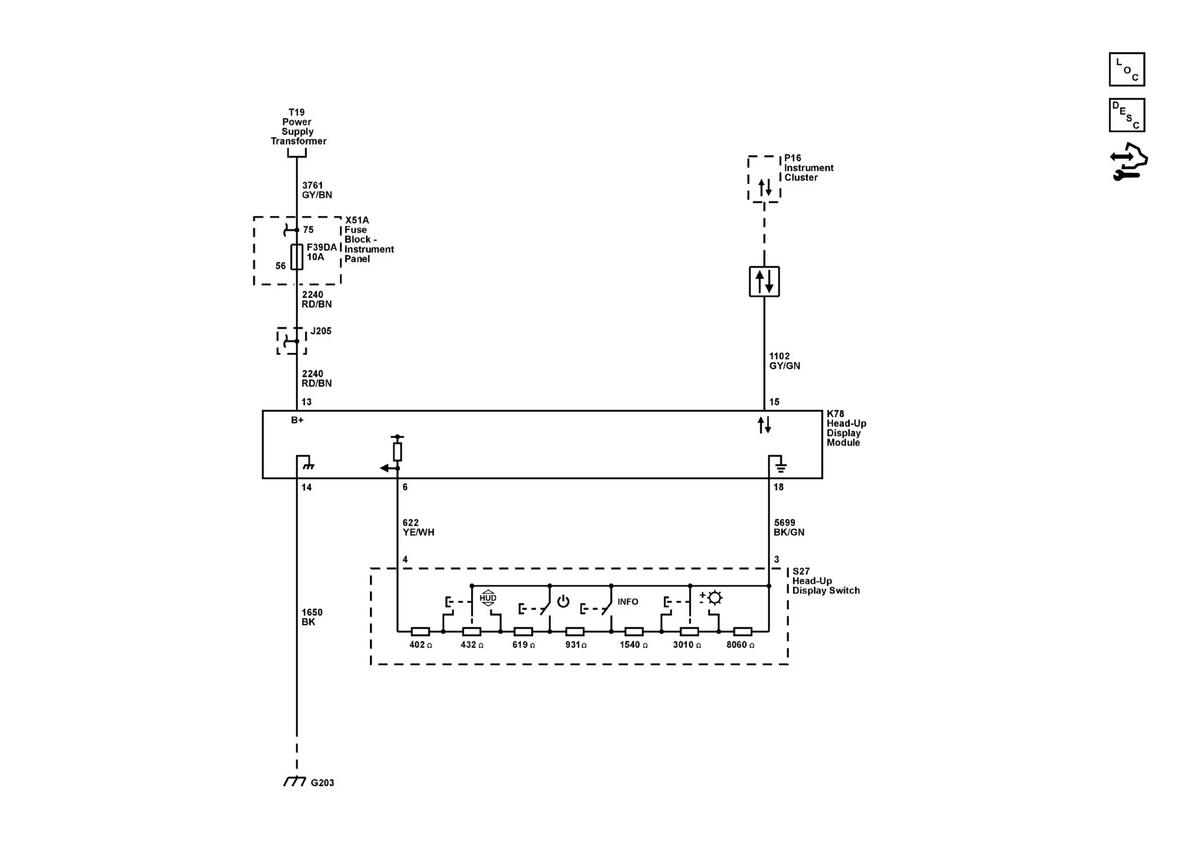

Home >> GMC >> 2024 >> Terrain SLT, FWD >> Repair and Diagnosis >> Accessories & Equipment >> Gauges & Instrument Panels >> Instrument Panel, Displays And Gauges >> Schematic Wiring Diagrams >> Head-Up Display Wiring Schematics >> Head-Up Display Wiring Schematics (UV7)
